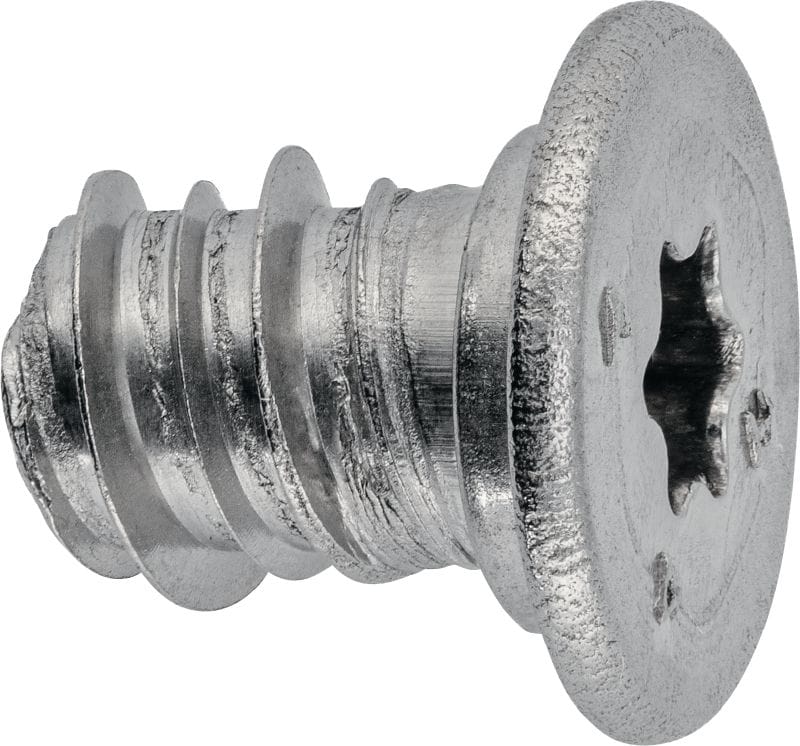

S-HP02SS Self-tapping screw
S-HP02SS Self-tapping screw for hidden-panel fastenings in light-ventilated facade applications
- Screw drive/recess type: TX 25 HF
- Base materials: High pressure Laminate
- Environmental conditions: Dry indoor, Indoor with temporary condensation, Outdoor with low pollution, Outdoor with moderate concentration of pollution, Coastal areas
premium
Technical Data
Screw drive/recess type
TX 25 HF
Base materials
High pressure Laminate
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor with low pollution, Outdoor with moderate concentration of pollution, Coastal areas
Screw diameter d
7.2 mm
Length
9 mm
Screw head diameter
11 mm
Product class
Premium
Documents
Features & Applications
Features
- Productive and time-saving fastening method
- More reliable and corrosion-resistant fastenings
- Hidden fastenings of high pressure laminate (HPL) panels for aesthetic appearance
Applications
- Hidden panel fastenings in ventilated facade applications
- Fastening of pre-drill high-pressure laminate (HPL) panels
- Stainless steel (A4) for fastening in highly corrosive environments
For approval or certificate information, please see individual items.
