MFT-S2S UI L (88051)
MFT-S2S UI L - Application (88196)
S2S full application (88194)
MFT-S2S UI L (87664)

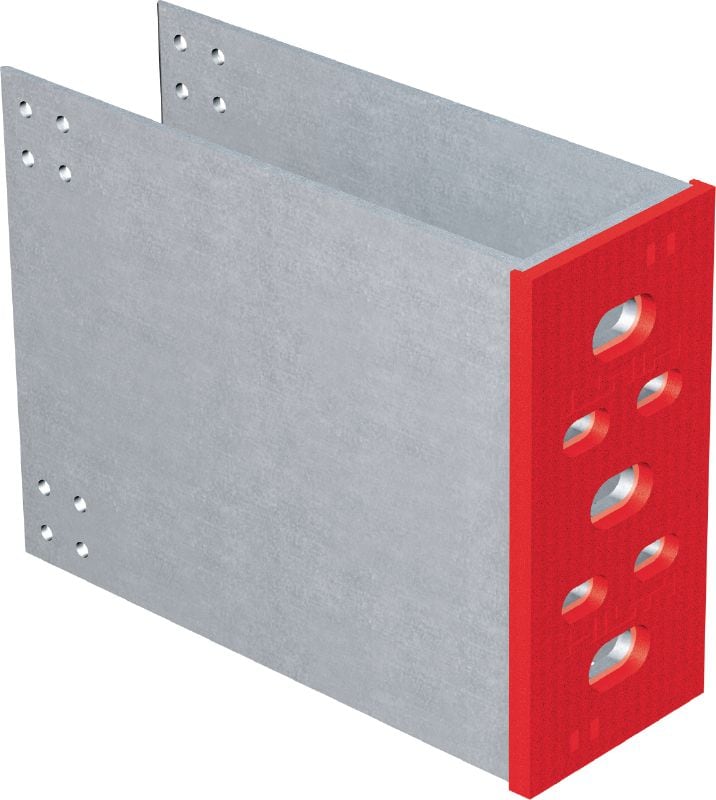

Large S2S bracket with pre-assembled isolator

  • Material composition: EN AW-6063 T66, Polypropylene (PP)
  • Insulation material: Polypropylene
  • Width: 74 mm

Choose options

Length
  • 80 mm
  • 180 mm
  • 300 mm
Pack size
  • 10
  • 20
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From INR 26,576.00

Technical Data

Details
Technical illustrations
Material composition
EN AW-6063 T66, Polypropylene (PP)
Insulation material
Polypropylene
Width
74 mm
Height
155 mm

Documents

Sustainability Documentation
Operating Instruction
pdf  EPD_MFT-FOX H and MFT-S2S, English [ 1 MB ]

Features & Applications

Features

  • Bracket lengths range from 80-300 mm
  • Pre-assembled isolator
  • Polymer isolator prevents corrosion between aluminium and concrete
  • Anchor and screw fastening option all in one bracket
  • 11 mm hole for use of anchors on concrete and masonry

Applications

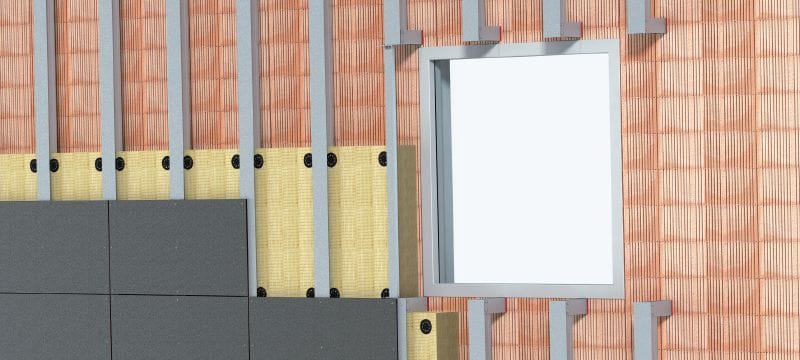

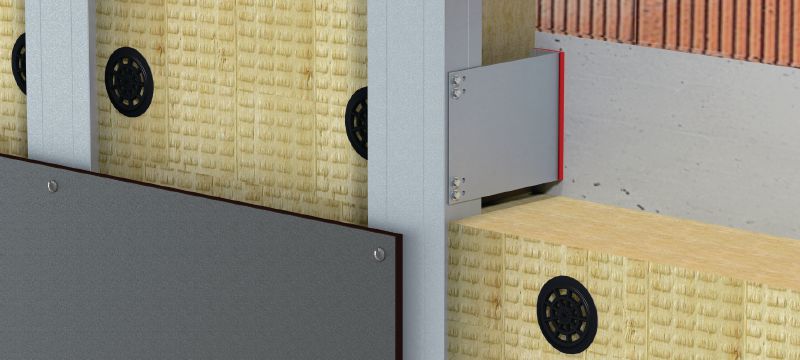

  • U-shaped bracket as a central part of the floor-spanning S2S system, installing ventilated facades independent of the wall condition between the slabs
  • Allows precise installation and alignment of S2S profiles
  • Suitable for all facade cladding types
  • Increased spacing between anchors in combination with MFT-S2S UI AP L is possible

For approval or certificate information, please see individual items.
