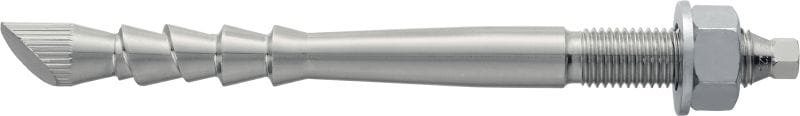

Ultimate-performance anchor rod for adhesive capsules in cracked concrete (carbon steel)

  • Material, corrosion: Carbon steel, zinc-plated
  • Environmental conditions: Dry indoor
  • Base materials: Concrete (cracked), Concrete (non-cracked)

Choose options

Anchor size
  • M10
  • M12
  • M16
  • M20
Anchor length
  • 124 mm
  • 158 mm
  • 181 mm
  • 201 mm
  • 231 mm
  • 269 mm
  • 271 mm
Material composition
  • Steel, 8.8 grade, zinc-plated (min. 5 µm)
Head configuration
  • Externally threaded
Pack size
  • 4
  • 5
  • 10
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From INR 11,111.00

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Environmental conditions
Dry indoor
Base materials
Concrete (cracked), Concrete (non-cracked)
PROFIS software
Yes
Approvals / test reports
BZS/shock, ETA, Fire
Type of fastening
Pre-fastening

Documents

Features & Applications

Features

  • High-performance capsule anchor
  • Minimal sensitivity to cracked concrete (tension zone)
  • Minimal sensitivity to application irregularities
  • Highly flexible solution
  • Short spacing and edge distances

Applications

  • Suitable for fastenings in cracked concrete in combination with Hilti HVU-TZ capsules

For approval or certificate information, please see individual items.
