HAC-V Front-of-slab reinforcing bar channel

Rebar HAC-V50 589/300 F XTS #2353753

Configurator
Technical Data
Documents
Features & Applications
Related Products
L069991_v1 (206048)
LCG100032_Rebar_XTS (2777098)
LGC100033_Rebar_XT (2777155)
LCG100036_Rebar_XT_still (2777123)
LCG100038_Rebar_XT (2777142)
LCG100034_Rebar_XTS_cropped (2777425)
LCG100036_v1_Rebar_XT_cropped (2777420)
LCG100035_Rebar_XT_cropped (2777421)

cast-in anchor channels for front-of-slab applications

  • Material, corrosion: Carbon Steel, Hot-Dip Galvanised
  • Channel profile: HAC-V 50, HAC-V-T 50, HAC-V-T 70, HAC-V 70
  • Anchor distance: 125 mm

Choose options

Channel profile
  • HAC-V 50, HAC-V-T 50, HAC-V-T 70, HAC-V 70
Pack size
  • 1
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
INR 6,509.60
INR 6,509.60 / 1 each

Technical Data

Material, corrosion
Carbon Steel, Hot-Dip Galvanised
Channel profile
HAC-V 50, HAC-V-T 50, HAC-V-T 70, HAC-V 70
Anchor distance
125 mm
PROFIS software
Yes

Documents

Approval document
Technical information
Operating Instruction
pdf ICC-ESR 3520 for HAC-V Anchor Channel Systems in Cracked and Uncracked Concrete incl. LABC and FBC Supplement (Aug. 2025), English [ 3.7 MB ]

Features & Applications

Features

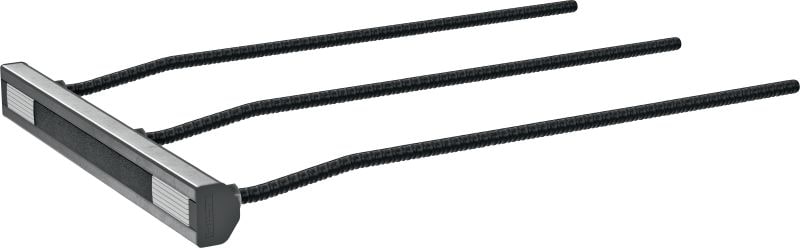

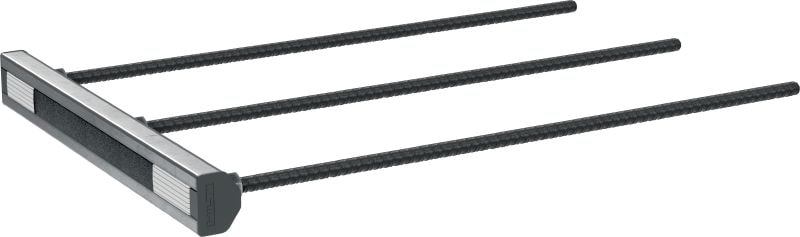

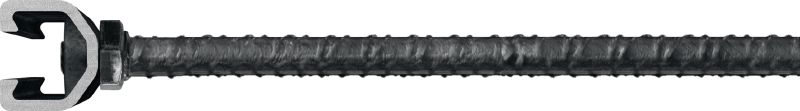

  • Safety-tested system of standard HAC anchor channels in combination with reinforcing bar
  • Efficient and intuitive to design with PROFIS anchor channel software – a powerful planning tool based on the ESR-3520 compliance evaluation as well as AC232 and ACI 318 requirements

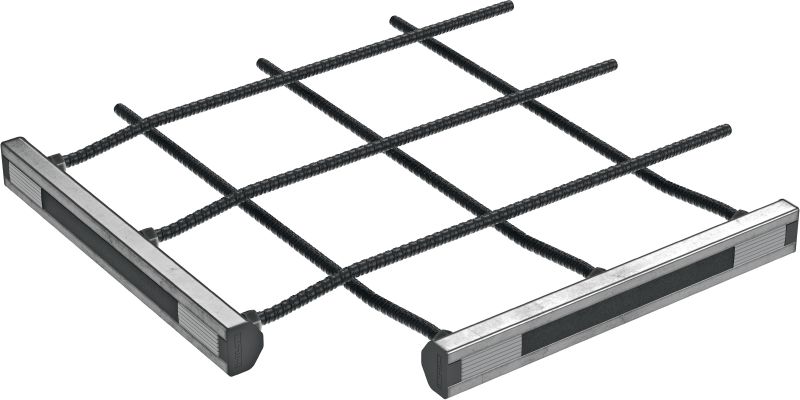

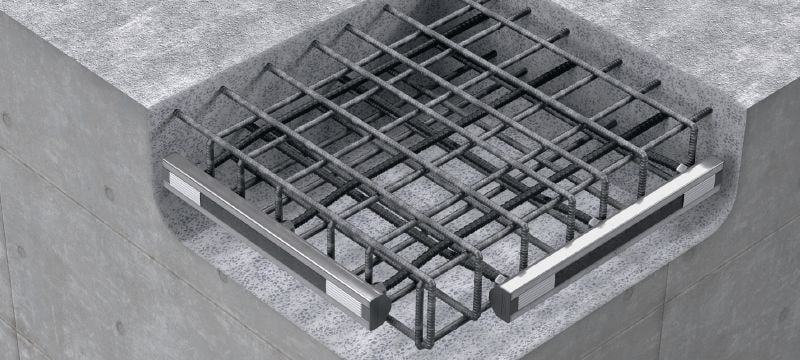

  • Two separate corner channels cater to the needs of various building angles
  • LDPE foam filler with grab tab – helps to keep concrete out of the channel and can be removed rapidly in one piece
  • Engineering support available – use PROFIS anchor channel software to streamline the design process or contact your local Hilti team for project-specific advice

Applications

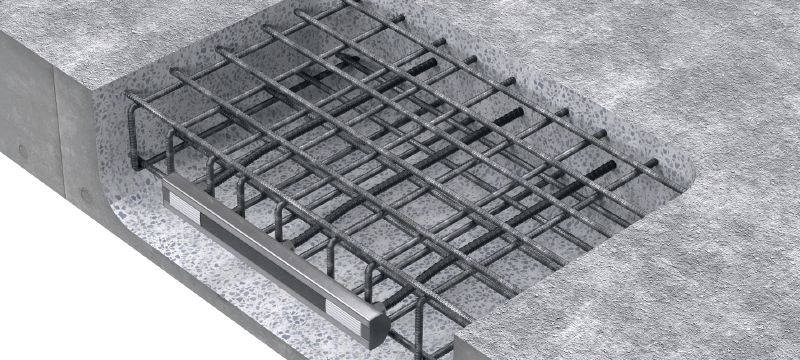

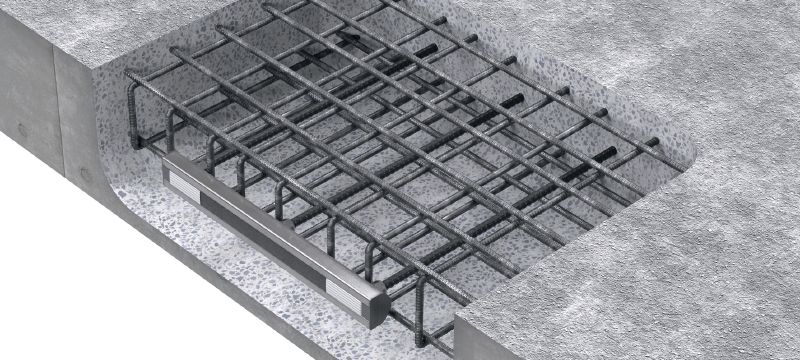

  • Front-of-slab applications for curtain wall façades in concrete
  • Front-of-slab applications in composite slabs
