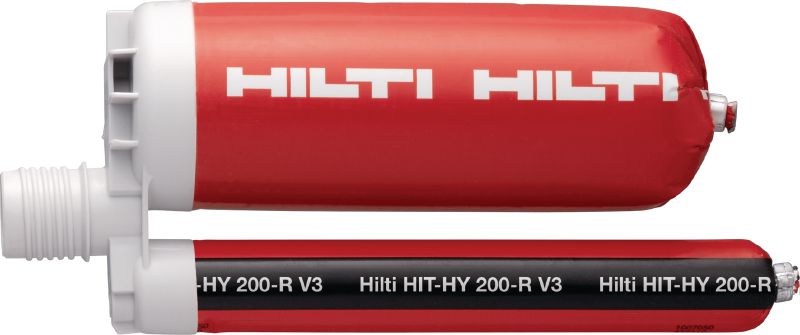

HIT-HY 200-R V3 Adhesive anchor

HY 200-R V3 promo_contractor_1080p-34_EN (EN / 206395)

HY 200-R V3 promo_specifier_1080p-34_EN (EN / 207149)

Ultimate-performance injectable hybrid mortar with approvals for post-installed rebar connections and anchoring structural baseplates

Base materials: Concrete (non-cracked)
Base material condition: Dry, Wet
Approvals / test reports: ETA, ICC-ES report (concrete)

Customers also searched for Fast Cure, 100 Year, Hybrid mortar, HY 200 or Ultimate.

Choose options

Content per can/cartridge

0.33 l
0.5 l

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From INR 5,420.20

Technical Data

Base materials

Concrete (non-cracked)

Base material condition

Dry, Wet

Approvals / test reports

ETA, ICC-ES report (concrete)

PROFIS software

Yes

Anchoring elements

HAS threaded rods, HAS-U threaded rods, HIT-Z torque-controlled bonded anchors, Rebar

Environmental conditions

Dry indoor, Highly corrosive special applications (e.g. tunnels, swimming pools), Indoor with temporary condensation, Outdoor (more than 1km to coast)

Cleaning procedures

Compressed-air cleaning, Manual cleaning

Storage and transportation temperature range

5 - 25 °C

In-service temperature – range

-40 - 120 °C

Free of styrene

Yes

Documents

Features & Applications

Features

Optimized for post-installed rebar – longer working time for rebar applications in dry concrete, wet concrete, or water filled drill holes (depending on rod specification and approvals), with a wide working temperature range from -10 to +40°C
Easier to specify and order – use PROFIS Engineering to design steel-to-concrete or concrete-to-concrete connections according to EC2, TR069, TR082 or the Hilti Design Method
Versatile adhesive anchor for wide-ranging conditions - approved for hammer-drilled, hollow-drilled and diamond-cored holes (with TE-YRT).
Faster, simpler and safer installations – combine with our fully cordless SafeSet system for a seamless installation solution to reduce time on-site and installation errors
Extensive approvals available - including ETA for cracked and uncracked concrete, seismic C2, fire resistance data, and with service life up to 100 years in rebar and anchor

Applications

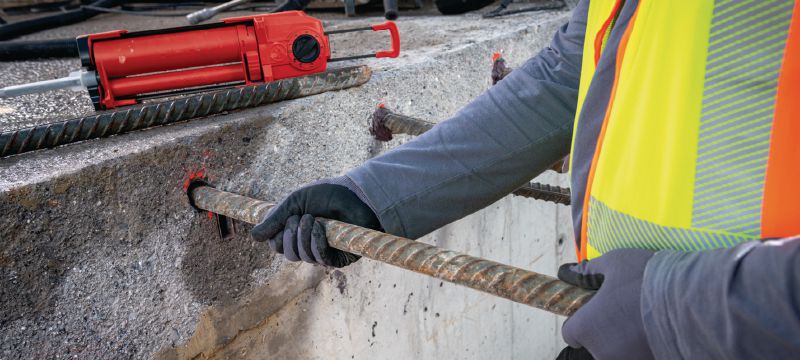

Structural concrete connections with post-installed rebar
Fastening secondary steel structures (e.g. racking, machinery, guard rails, sound barriers) to concrete

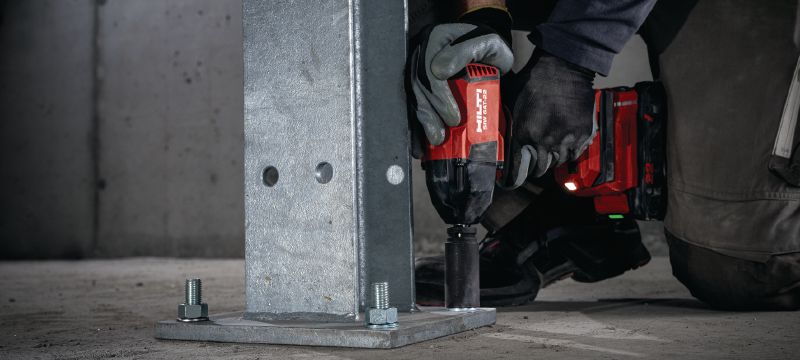

Anchoring structural steel connections (e.g. steel columns, beams) to concrete
Strengthening concrete and retrofitting reinforced concrete buildings, including replacing misplaced/missing cast-in rebar with post-installed rebar
Concrete connections designed both as rigid and as simply supported

For approval or certificate information, please see individual items.
