HIT-HY 170 Adhesive anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
HIT-HY 170, 500ml (71752)

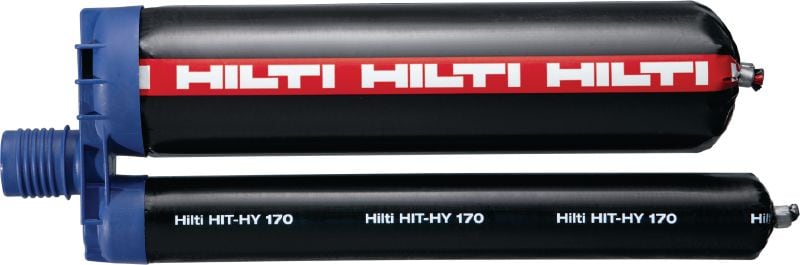

HIT-HY 170
HIT-HY 170 (L077165.tiff) (72357)
HIT-HY 170 (L077277.tiff) (78832)

High-performance injectable hybrid mortar with everyday approvals for anchoring in concrete and masonry

  • Base materials: Concrete (cracked), Concrete (non-cracked)
  • Base material condition: Dry
  • Approvals / test reports: ETA

Customers also searched for fast curing chemical, rebaring, injectable mortar or chemical anchor.

Choose options

Content per can/cartridge
  • 0.33 l
  • 0.5 l
Pack size
  • 1
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From INR 3,923.20

Technical Data

Base materials
Concrete (cracked), Concrete (non-cracked)
Base material condition
Dry
Approvals / test reports
ETA
Seismic loading
No
Fatigue loading
No
Fire resistance
No
PROFIS software
Yes
Environmental conditions
Dry indoor
Cleaning procedures
Manual cleaning
Storage and transportation temperature range
5 - 25 °C
In-service temperature – range
-40 - 80 °C
Free of styrene
Yes

Documents

Technical information
Approval document
Material safety datasheet
Sustainability Documentation
Operating Instruction
pdf Product_Technical_Datasheet_HIT-HY 170_Concrete to concrete, English [ 1.2 MB ]
pdf Product_Technical_Datasheet_HIT-HY 170_Steel to masonry, English [ 1.5 MB ]
pdf Whitepaper fire design of PIR applications, English [ 1.4 MB ]

Features & Applications

Features

  • Suitable for use in masonry materials or cracked and uncracked concrete with all anchor rods (ETA report)
  • Provides strong, reliable and easily installed fastenings in concrete and masonry materials
  • Working time optimised for anchoring applications in concrete and masonry
  • Suitable for indoor and outdoor applications as well as use in dry and wet hole conditions
  • Extensive range of accessories available (e.g. sleeves, cordless electric dispenser)

Applications

  • Light- and medium-duty anchoring applications such as window bars, sanitary equipment, awnings, air conditioning systems, lights
  • Anchoring light structural steel connections such as steel columns and beams
  • Anchoring secondary steel elements
  • Renovation / upgrades with post-installed rebars
  • Substitution of misplaced / missing rebars

For approval or certificate information, please see individual items.
