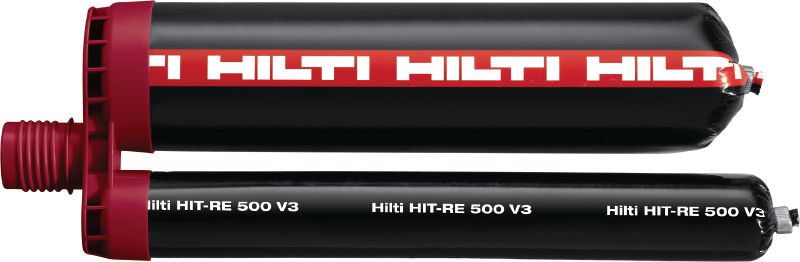

HIT-RE 500 V3 Epoxy anchor

KIT OBSOLETE : DO NOT USE #3628750

Configurator
Technical Data
Documents
Features & Applications
Related Products
HIT-RE 500 V3 (76358)
HIT-RE 500 V3 (78346)
HIT-RE 500 V3 (78500)
HIT-RE 500 V3 (78348)
HIT-RE 500 V3 (78501)

Ultimate-performance injectable epoxy mortar with approvals for rebar connections and heavy-duty anchoring

  • Approvals / test reports: BZS/shock, ETA, Fire, Seismic
  • Seismic loading: Yes
  • Fatigue loading: Yes

Customers also searched for epoxy, rebaring, rebar grouting, rebar injection or rebaring chemical.

Choose options

Content per can/cartridge
  • 0.5 l
Pack size
  • 1
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
INR 532,745.00
INR 532,745.00 / 1 each

Technical Data

Approvals / test reports
BZS/shock, ETA, Fire, Seismic
Seismic loading
Yes
Fatigue loading
Yes
Fire resistance
Yes
PROFIS software
Yes
Storage and transportation temperature range
5 - 25 °C
Shelf life from date of manufacture (at 23°C and 50% relative humidity)
12 months

Documents

Approval document
Sustainability Documentation
Material safety datasheet
Operating Instruction
pdf ETA-20/0541_HIT-RE 500 V4_Anchor_EC2_100years_112021, English, French, German, Polish [ 9.6 MB ]
pdf ETA-16/0143_HIT-RE 500 V3_Anchor_EC2_50&100years_052019, English, French [ 5.3 MB ]
pdf ETA-25/0449, HIT-RE 500 V3, concrete to concrete connection, 120 year, ML, French, English [ 4.2 MB ]

Features & Applications

Features

  • High performance and technical superiority as per international approvals
  • Suitable for diamond-cored holes – when prepared using the TE-YRT roughening tool
  • Injectable epoxy suitable for all-year use – cures at temperatures down to -5°C / 23°F
  • Longer working time – allows greater flexibility during installation
  • Suitable for water-filled holes and underwater applications (depending on rod specification and approvals)

Applications

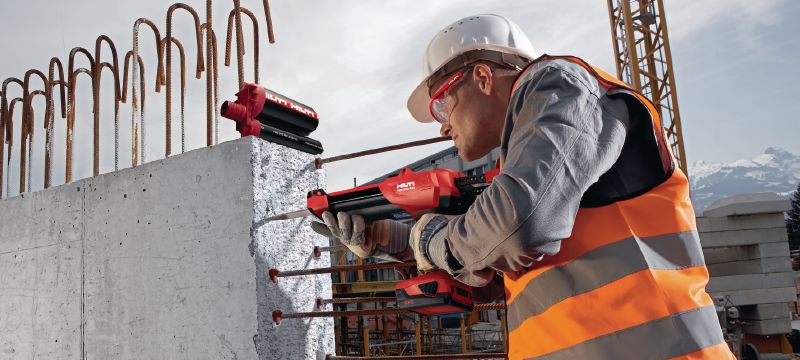

  • Structural connections with post-installed rebar (e.g. extension/connection to walls, slabs, stairs, columns, foundations, etc.)
  • Structural renovation of buildings, bridges and other civil structures, retrofitting and re-strengthening of concrete members possible
  • Anchoring structural steel connections (e.g. steel columns, beams, etc.)
  • Fastenings requiring seismic qualification
  • Fastening in natural stone and wood, including GLT and CLT made by spruce, pine or fir.
