HIT-HY 200-R Adhesive anchor

Kit HY 200-R(75)+HDE+CB 500+Battery+Chgr #3606934

Ultimate-performance injectable hybrid mortar with approvals for rebar connections and heavy-duty anchoring

Customers also searched for Fast cure, Hybrid mortar or fastest curing.

Content per can/cartridge

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

INR 555,117.30

INR 555,117.30 / 1 each

Technical Data

Approvals / test reports

ETA, Fire, ICC-ES report (concrete), Seismic

Seismic loading

Yes

Fatigue loading

Fire resistance

Yes

PROFIS software

Yes

Storage and transportation temperature range

5 - 25 °C

Shelf life from date of manufacture (at 23°C and 50% relative humidity)

12 months

No hole cleaning required with the revolutionary new HIT-Z anchor rod

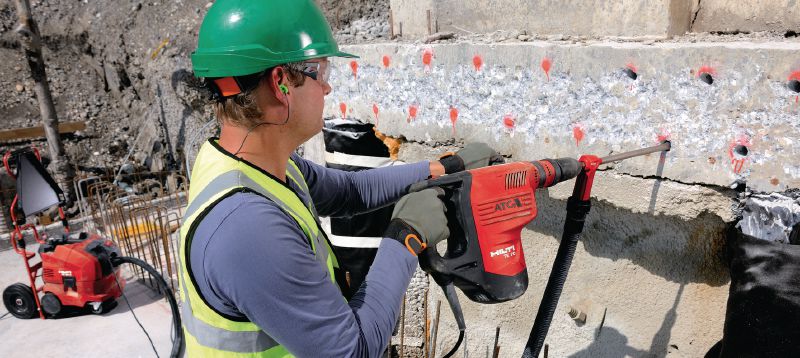

Automatic hole cleaning with TE-CD and TE-YD drill bits in combination with Hilti vacuum cleaners
Fulfils the requirements of the most demanding ICC-ES and ETA C2 approvals for seismic applications
Working time optimised for rebar and deep anchoring applications
Post-installed rebars perform like cast-in connections

Anchoring structural steel connections (e.g. steel columns, beams)
Anchoring secondary steel structures (e.g. racking, guard rails, sound barriers)
Anchoring safety barriers, balustrades, fire escape staircases
Seismic strengthening / retrofitting and bracing of reinforced concrete buildings
Structural splices / straight connections with post-installed rebars
