X-FB MX P-clip

L111494_cropped (191392)

L111491_cropped (191391)

L111477_cropped (191390)

L095808_cropped (177828)

L111494_cropped (191392)

L111491_cropped (191391)

L111477_cropped (191390)

L095808_cropped (177828)

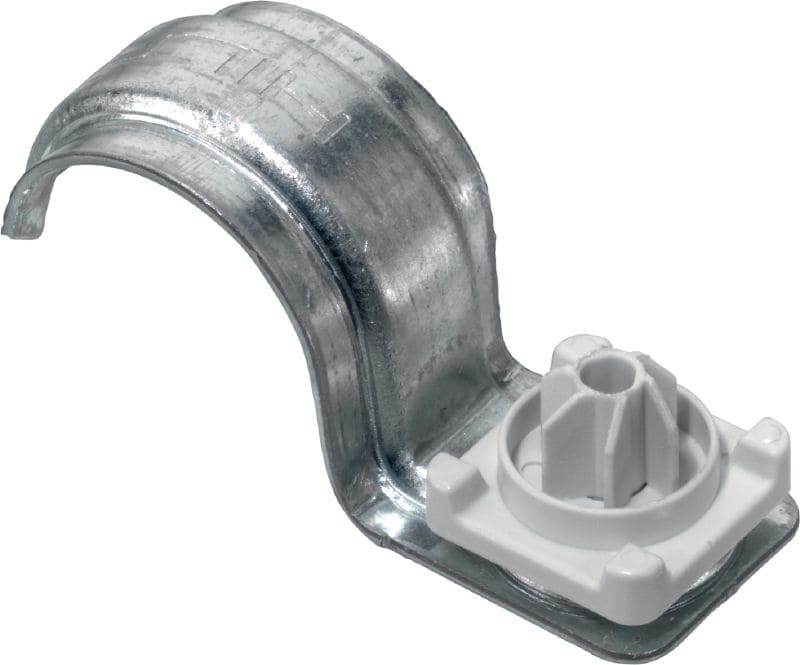

Metal cable/conduit clip for use with collated nails

Application: Conduit Fastening, Piping Connections
Material: Carbon steel
For use with (tools): DX 2, DX 351, DX 460, DX 5, DX 6

ultimate

Technical Data

Application

Conduit Fastening, Piping Connections

Material

Carbon steel

For use with (tools)

DX 2, DX 351, DX 460, DX 5, DX 6

Base materials

Concrete (soft), Concrete (tough), Masonry (solid limestone brick), Steel

Approvals

ETA

Corrosion protection

Galvanised zinc coated <20 µm

Material composition

Fixation element: galvanized steel sheet, Zinc coating 10-20 µm, Plastic component: polyamide (halogen and silicone free)

Environmental conditions

Dry indoor

Product class

Ultimate

Documents

Features & Applications

Features

Friction-fit in the nose of BX/GX/DX nailers for easy handling
Bracing rib for high rigidity and a tight, more secure hold on flexible conduits
Quick, cost-efficient fastening
Engineered for high-quality, more reliable fastening
Virtually dust-free fastening

Applications

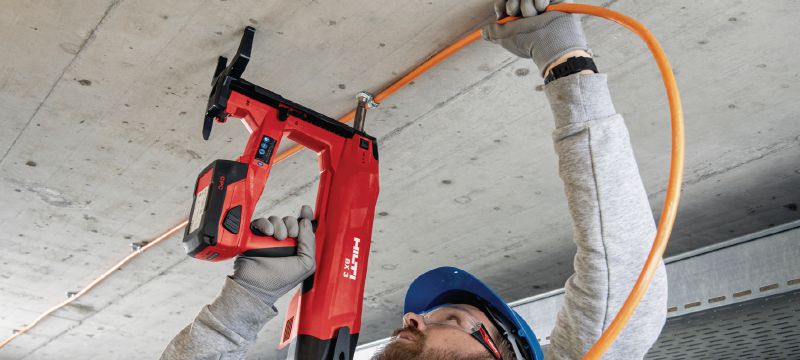

Fastening electrical cables

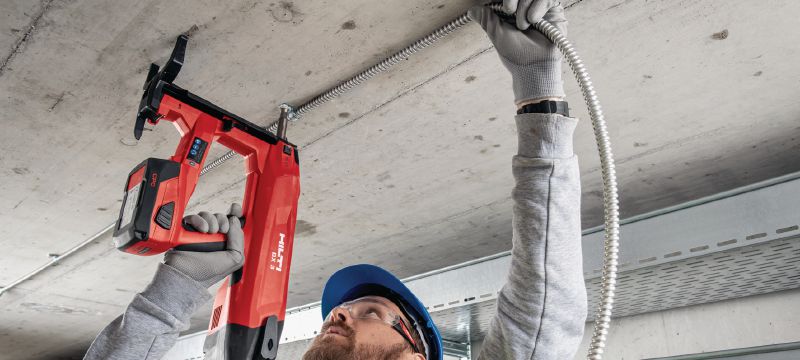

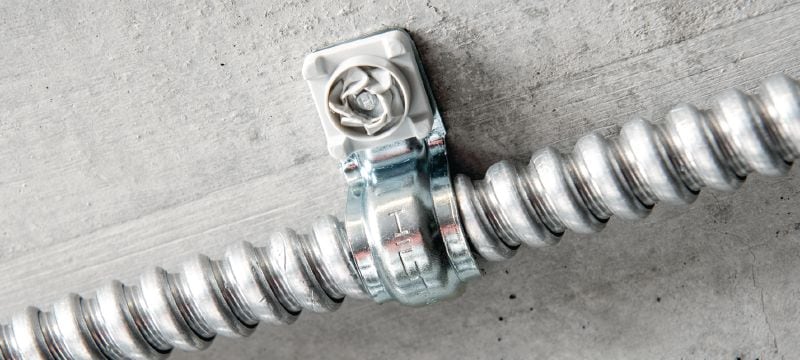

Fastening flexible and rigid electrical conduits
Fastening water and heating pipes

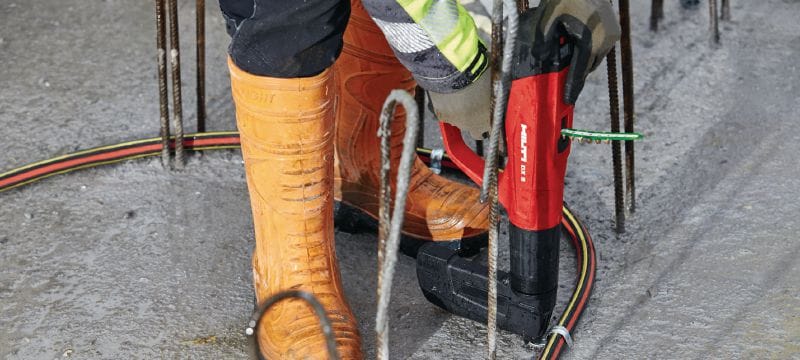

Fastening injection hoses

For approval or certificate information, please see individual items.
