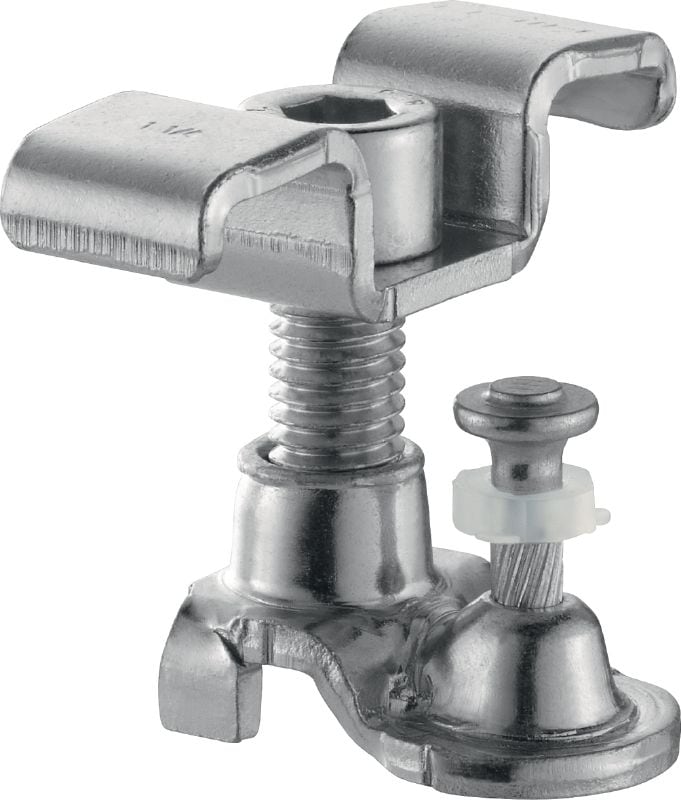

X-GR Grating clip with nail

Grating disc X-GR 1 1/4 #2106416

Directly fastened grating fastener

  • Application: Grating
  • Approvals: ITB
  • For use with (tools): DX 460, DX 5, DX 6
premium

Customers also searched for Gratings.

Choose options

Grating height
  • 27 - 32 mm
Grating width range
  • 23 - 38 mm
Corrosion protection
  • Duplex coating, equivalent to 45 µm hot-dip galvanised
Pack size
  • 100
Product options
Quantity
Pack
Total Pieces
100
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

INR 32,795.00

INR 327.95 / 1 each

Technical Data

Application
Grating
Approvals
ITB
For use with (tools)
DX 460, DX 5, DX 6
Corrosion protection
Duplex coating, equivalent to 45 µm hot-dip galvanised
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor temporary applications, Outdoor with low pollution, Outdoor with moderate concentration of pollution
Minimum thickness of base material (steel)
4 mm
Product class
Premium

Documents

Features & Applications

Features

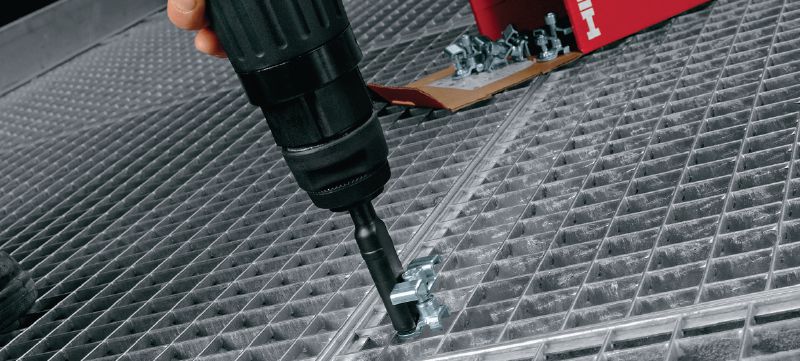

  • Preassembled saddle for increased productivity – up to 120 fasteners per hour by one user with the fully automatic DX 460-GR nailer
  • Two support legs provide 90° fastening for high application limit
  • High productivity – can help to significantly reduce time and costs overall
  • Duplex coating for greater corrosion protection
  • Removable fastener suitable for various grating heights

Applications

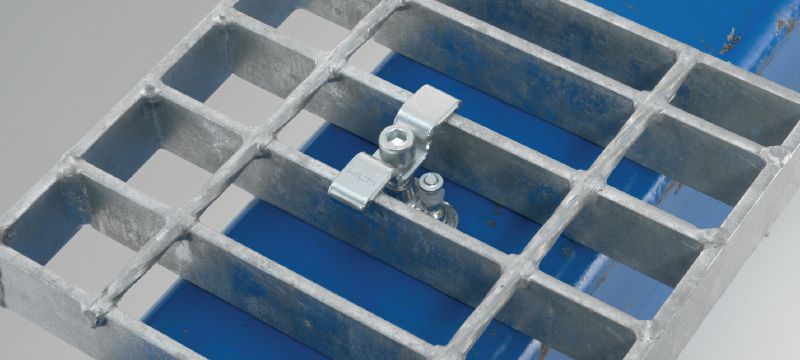

  • Fastening grating to steel structures in mildly corrosive environments
