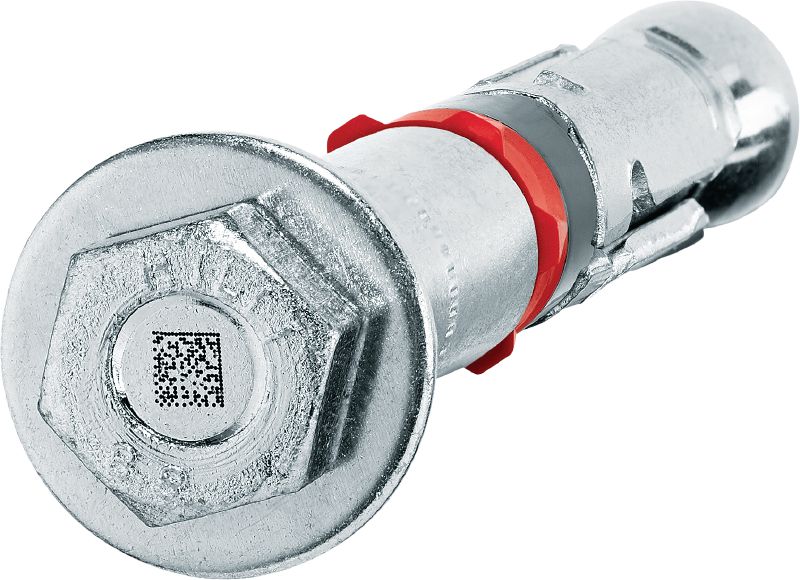

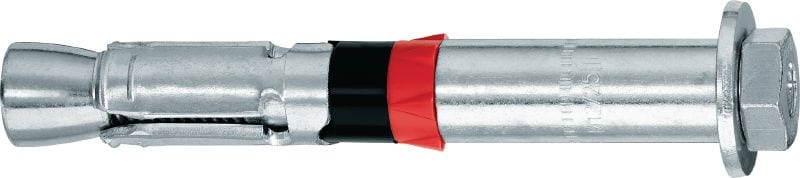

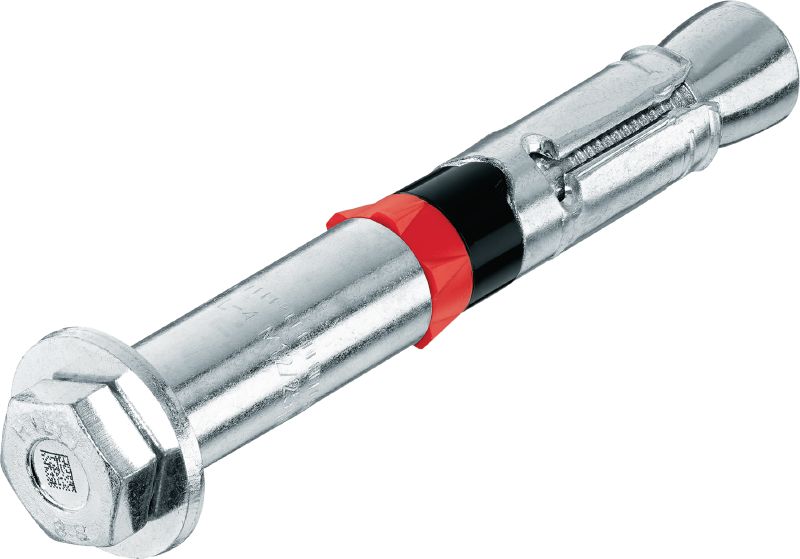

HSL4 Heavy-duty wedge anchor
Ultimate-performance heavy-duty wedge anchor with approvals for safety-relevant applications in concrete (carbon steel, hex head)
- Material, corrosion: Carbon steel, zinc-plated
- Head configuration: Hex head
- Approvals / test reports: ETA, Fire, ICC-ES report (concrete), LABC, Nuclear (NQA-1), Seismic
Choose options
Anchor size
- M8
- M10
- M12
- M16
- M20
- M24
Anchor length
- 82 mm
- 94 mm
- 97 mm
- 109 mm
- 111 mm
- 117 mm
- 129 mm
- 131 mm
- 138 mm
- 153 mm
- 156 mm
- 163 mm
- 178 mm
- 183 mm
- 205 mm
- 213 mm
- 235 mm
Pack size
- 4
- 6
- 10
- 20
- 40
Quantity
Packs
Total Pieces
1
Discounted net
From INR 11,200.00
Technical Data
Material, corrosion
Carbon steel, zinc-plated
Head configuration
Hex head
Approvals / test reports
ETA, Fire, ICC-ES report (concrete), LABC, Nuclear (NQA-1), Seismic
Base materials
Concrete (cracked), Concrete (uncracked)
Installation tools
SIW 6AT-A22 Cordless impact wrench
PROFIS software
Yes
Documents
Features & Applications
Features
- High tension and shear load capacities
- Force-controlled expansion which allows follow-up expansion
- ETA Option 1 for cracked and uncracked concrete
- ICC-ES/AC 193 for cracked or uncracked concrete and seismic applications
- Suitable for dynamic loading including fatigue, seismic and shock
Applications

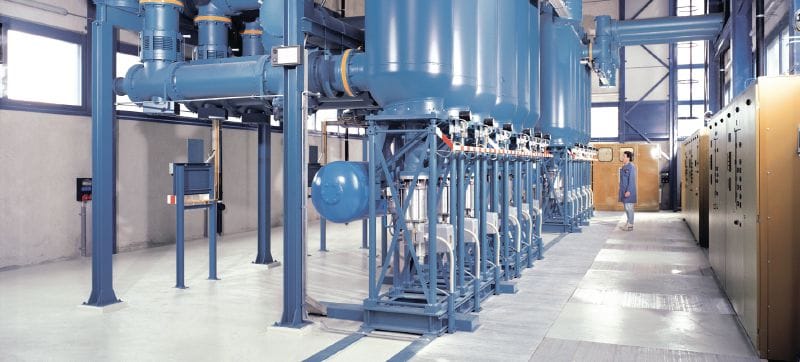

- Heavy-duty fastenings in high safety-relevant or dynamic applications, including applications in nuclear power plants

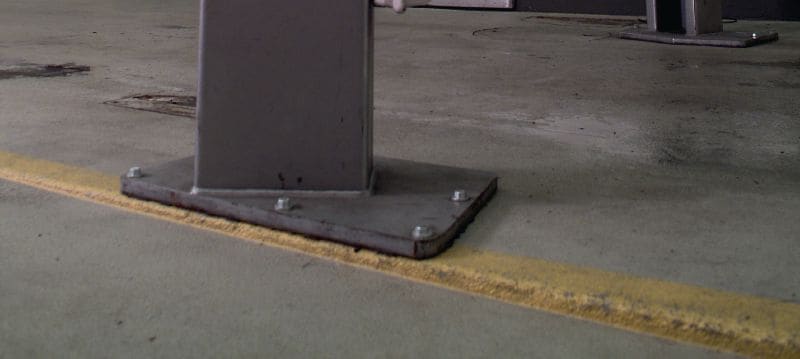

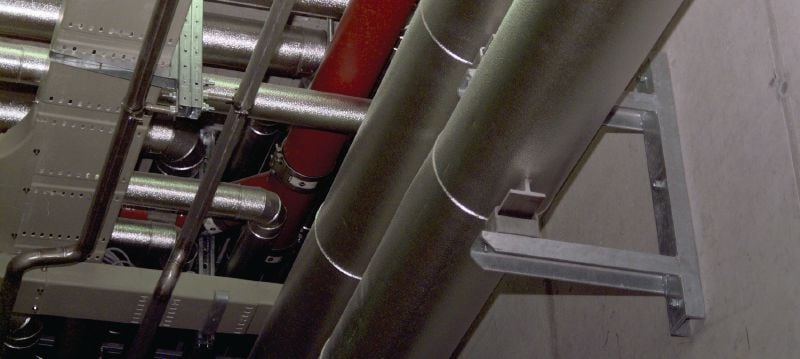

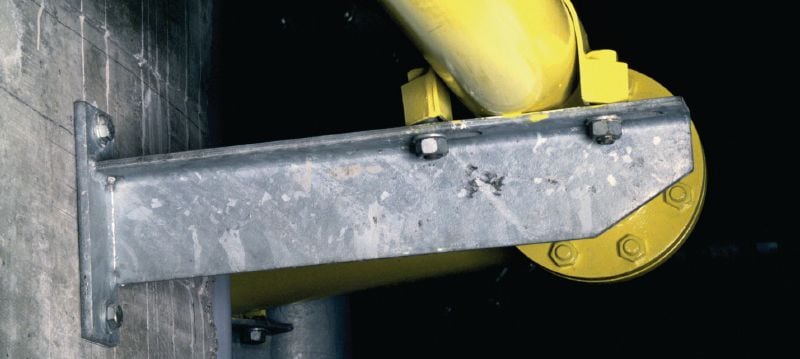

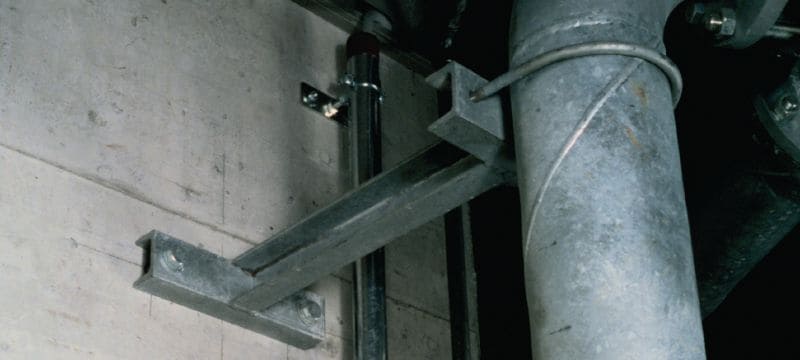

- Anchoring where extensive approval back-up or technical back-up is required, e.g. machines, heavy equipment, steel columns, heavy pipe supports, pumps, beam supports, medical equipment, cantilevers, cranes, car hoists, etc.
For approval or certificate information, please see individual items.
