HSL4-G Heavy-duty wedge anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
L121480 (205833)
L121484 (205838)
00001263.tif
HSL-3-G
K4A2HSL-TZ.tif

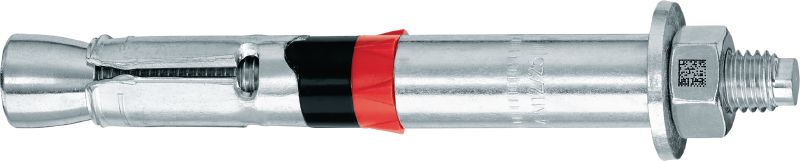

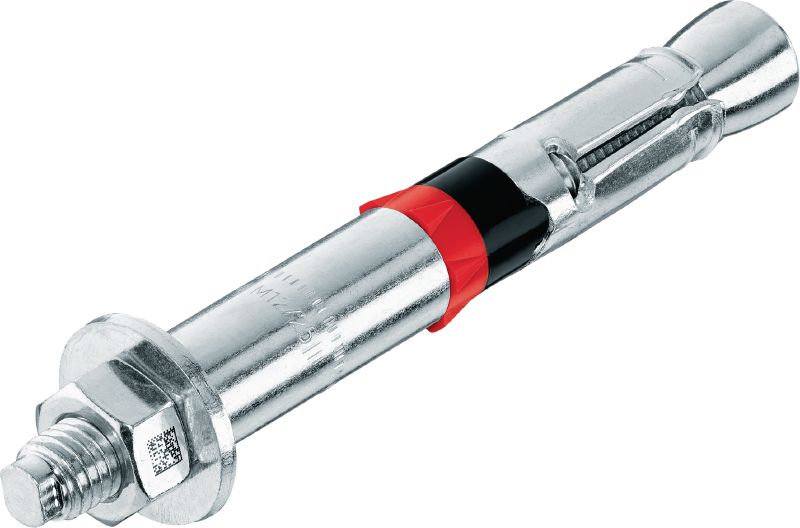

Ultimate-performance heavy-duty expansion stud anchor with approvals for safety-relevant applications in concrete (carbon steel, external thread)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Externally threaded
  • Approvals / test reports: ETA, Fatigue, Fire, Seismic

Choose options

Anchor size
  • M8
  • M10
  • M12
  • M16
  • M20
  • M24
Anchor length
  • 106 mm
  • 107 mm
  • 121 mm
  • 127 mm
  • 141 mm
  • 147 mm
  • 160 mm
  • 172 mm
  • 175 mm
  • 185 mm
  • 187 mm
  • 200 mm
  • 205 mm
  • 222 mm
  • 230 mm
  • 235 mm
  • 250 mm
  • 275 mm
Pack size
  • 4
  • 6
  • 10
  • 20
  • 40
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From INR 12,064.00

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Externally threaded
Approvals / test reports
ETA, Fatigue, Fire, Seismic
Base materials
Concrete (cracked), Concrete (uncracked)
PROFIS software
Yes

Documents

Approval document
Technical information
Brochure
Operating Instruction
pdf ETA_19-0556_HSL-4_11/2022, English, French, Polish, German [ 5.6 MB ]
pdf ICC-ES Evaluation report, ESR-4386 HSL4, Concrete, English [ 1.1 MB ]
pdf ETA-19/0858_HSL-4_022020, English, French, Polish [ 3.3 MB ]

Features & Applications

Features

  • High tensile and shear load capacity
  • Force-controlled expansion allows follow-up expansion
  • ETA Option 1 for cracked and uncracked concrete
  • ICC-ES/AC 193 for cracked or uncracked concrete and seismic applications
  • Suitable for dynamic loading including fatigue, seismic and shock

Applications

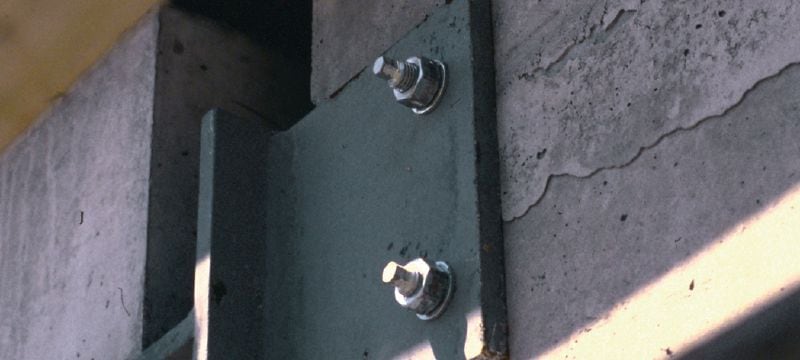

  • Heavy-duty fastenings in highly safety-relevant or dynamic applications, including applications in nuclear power plants

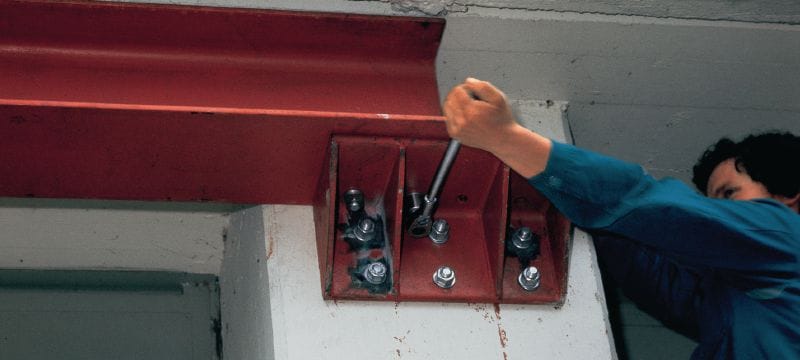

  • Applications where extensive approval back-up or technical back-up is required, e.g. machines, heavy equipment, steel columns, heavy pipe supports, pumps, beam supports, medical equipment, cantilevers, cranes, car hoists, etc.

For approval or certificate information, please see individual items.
