HUS4-A screw anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
L144882 (1918338)
L144881 (1918334)
L143010_cropped (228953)

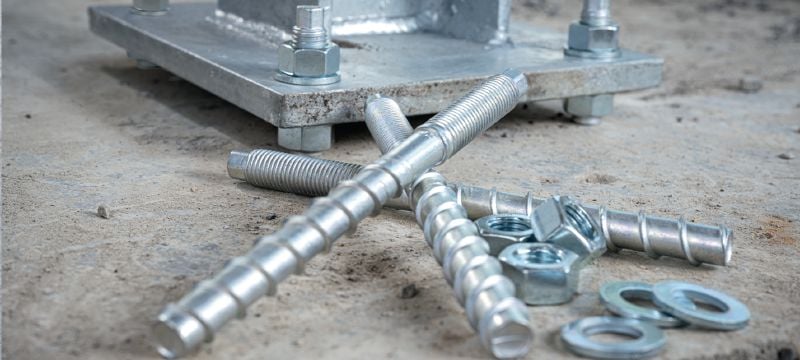

High-performing threaded head screw anchor for fastening to concrete and masonry (carbon steel)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Externally threaded
  • Approvals / test reports: ETA, Fire, Seismic

Choose options

Anchor size
  • 10 mm / M12
  • 14 mm / M16
Anchor length
  • 155 mm
  • 165 mm
Pack size
  • 16
  • 25
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From INR 6,629.60

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Externally threaded
Approvals / test reports
ETA, Fire, Seismic
Base materials
Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (solid)
Reusable (and removable)
Yes
Cleaning procedures
Manual cleaning, Non-cleaning
PROFIS software
Yes
Environmental conditions
Dry indoor
Material composition
Steel, zinc-plated (min. 5 µm)

Documents

Approval document
Technical information
Certificate
Test Report
Sustainability Documentation
Operating Instruction
pdf ETA-20/0867 HUS4 screw anchor in concrete , English, German [ 33.9 MB ]
pdf ER-969 HUS4_IAPMO_Evaluation_Report, English [ 1.1 MB ]
pdf ETA-18/1160 HUS4-MAX Bonded screw, English, German, Polish [ 5.7 MB ]
pdf DIBt_Z-21.8-2137_temporary fastening_210325, English, German [ 2.5 MB ]
pdf ETA-23/0936 HUS4 screw anchor in masonry, English, German, Polish [ 22.1 MB ]

Features & Applications

Features

  • Removable, adjustable (nominal embedment ≥ 60 mm) and reusable – ideal for temporary fastenings
  • Simpler to instal – less drilling, no cleaning, no high-accuracy torque wrench and no hammering required
  • Improved setting with less blocking – thanks to smaller core diameter and new thread design
  • External metric thread – for pre-installation or to fasten stand-off baseplates
  • Cost-saving design – pair with PROFIS Engineering software to optimise designs and reduce material costs

Applications

  • Temporary fastenings to concrete – such as traditional formwork, propping systems and protection barriers
  • Suitable for use in uncracked and cracked concrete, steel-fibre reinforced concrete, hollow core slabs (size 10-14), metal decks (size 10), low-strength concrete and masonry (size 10)
  • Assessed for use in a range of conditions: static, quasi-static, seismic (C1 & C2) and fire
  • Suitable for permanent fastenings in dry, indoor environments and temporary outdoor use

For approval or certificate information, please see individual items.
