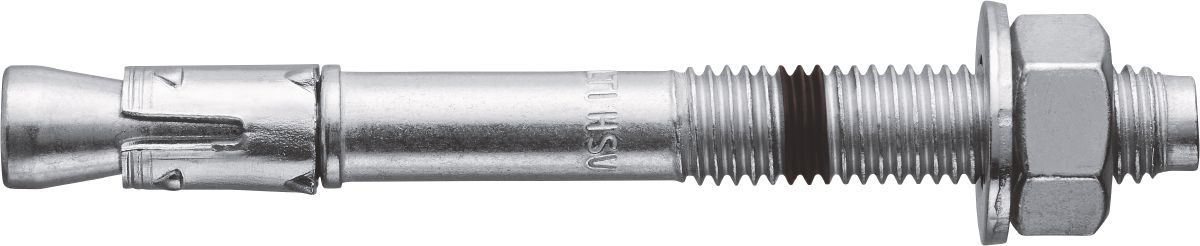

HSV G02 Wedge anchor




Economical wedge anchor (M8-M16) for static loads in uncracked concrete (carbon steel)
- Material, corrosion: Carbon steel, zinc-plated
- Head configuration: Externally threaded
- Installation tools: SIW 4AT-22 ½” Cordless impact wrench, SIW 6AT-22 Mid-Torque impact wrench
Choose options
Anchor size
- M8
- M10
- M12
- M16
Anchor length
- 75 mm
- 90 mm
- 98 mm
- 100 mm
- 115 mm
- 117 mm
- 120 mm
- 137 mm
- 145 mm
Pack size
- 16 pc
- 25 pc
- 30 pc
- 40 pc
- 100 pc
- 130 pc
- 180 pc
Quantity
Packs
Total Pieces
1
You can not see your company prices
Discounted net
Price loading error occured
Please contact us
Technical Data
Material, corrosion
Carbon steel, zinc-plated
Head configuration
Externally threaded
Installation tools
SIW 4AT-22 ½” Cordless impact wrench, SIW 6AT-22 Mid-Torque impact wrench
PROFIS software
No
Documents
pdf Operating Instruction HSV M8 G02, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 764.8 KB ]
pdf Operating Instruction HSV M10 G02, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 854.2 KB ]
pdf Operating Instruction HSV M12 G02, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 904.4 KB ]
pdf Operating Instruction HSV M16 G02, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 906.5 KB ]
Features & Applications
Features
- High-performance – optimised wedge and sleeve design for uncracked concrete, enabling efficient anchor length and embedment.
- Faster and easier installation – Install quickly with the Adaptive Torque Module
- Reliable installation control – An integrated setting mark enables quick visual verification of correct embedment
- Multiple embedment depths – install with two embedment depth options for higher productivity or for higher performance with flexible edge and spacing distance
Applications

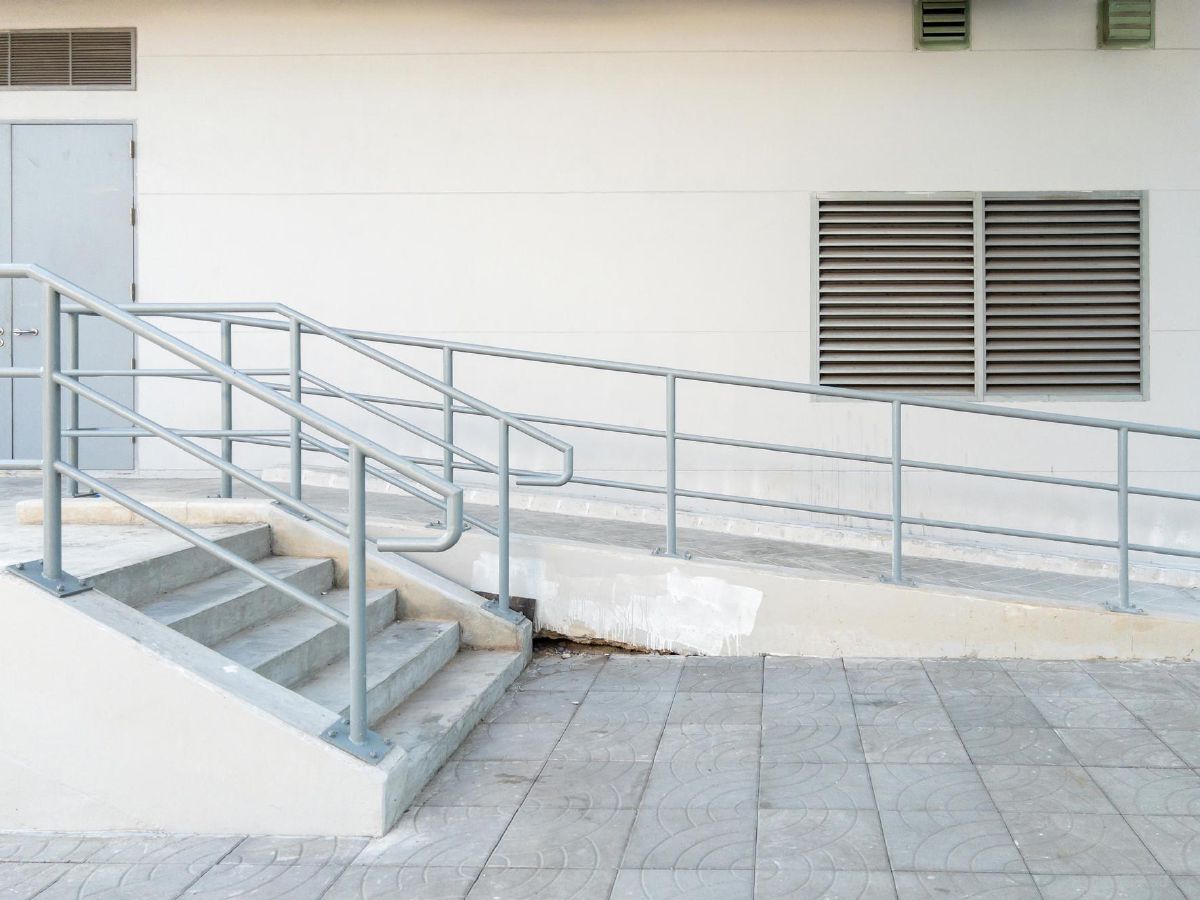

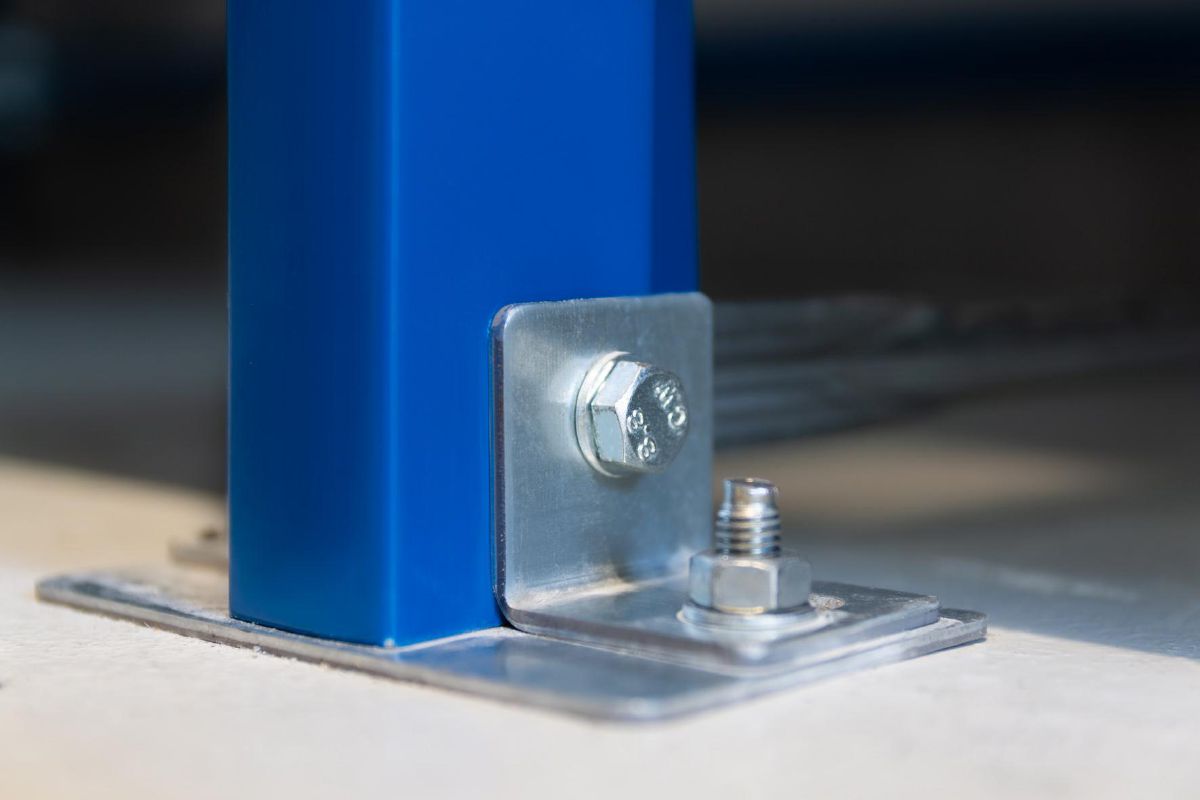

- Fastening baseplates, handrails, façade systems, and mechanical, electrical or plumbing supports to concrete.
- Fastening in uncracked concrete
For approval or certificate information, please see individual items.
