S-MD55GZ Self-drilling metal screws

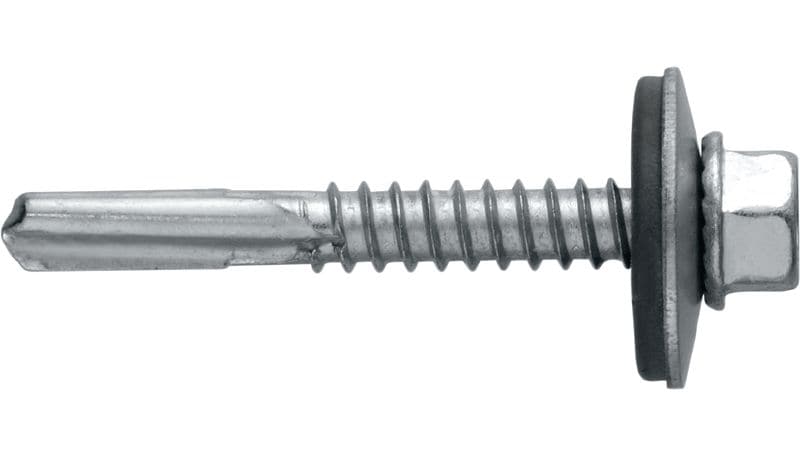

Self-drill screw S-MD 55Z 5,5x65 #2054831

Configurator
Technical Data
Documents
Features & Applications
Related Products
r522329

Self-drilling screw (zinc-plated carbon steel) with 16 mm washer for thick metal-to-metal fastenings (up to 15 mm)

  • Screw drive/recess type: Hexagon 8
  • Washer size: 16 mm
  • Base materials: Carbon steel
premium

Choose options

Thickness fastened range MF
  • 4.6 - 40 mm
Drilling capacity range DC
  • 4.6 - 15 mm
Length
  • 65 mm
Pack size
  • 100
 Product options
Quantity
Pack
Total Pieces
100
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
INR 2,557.10
INR 25.57 / 1 each

Technical Data

Screw drive/recess type
Hexagon 8
Washer size
16 mm
Base materials
Carbon steel
Environmental conditions
Dry indoor
Screw diameter d
5.5 mm
Length
65 mm
Screw head diameter
10 mm
Product class
Premium
Washer type
Bonded EPDM

Documents

Reference document
Technical information
Sustainability Documentation
pdf Powder-actuated fasteners and fastening screws in steel construction, Reprint from Stahlbau-Kalender 2019, Ernst & Sohn, English [ 7 MB ]

Features & Applications

Features

  • Self-drilling screw for fast assembly in one step
  • Perfectly sealed fastening points
  • Perfect Sealing (PS) feature – specially engineered geometry below the head which prevents over-compression of the EPDM washer, helping to reliably seal out water
  • Fast and robust drill tip with Racing Tip technology – a wave-form cutting edge which removes chips much faster and helps prevents point burn-out
  • For reliable fastenings with defined load values

Applications

  • Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
  • Galvanised carbon steel for fastening in dry, indoor environments
  • Thick metal-to-metal connections (up to 15 mm)
  • For applications requiring watertight fastenings with 16 mm washer
