S-MD05SS Self-drilling metal screws

Self-drill screw S-MD05SS 5,5x82 #2211434

Configurator
Technical Data
Documents
Features & Applications
Related Products
r43205,r43224

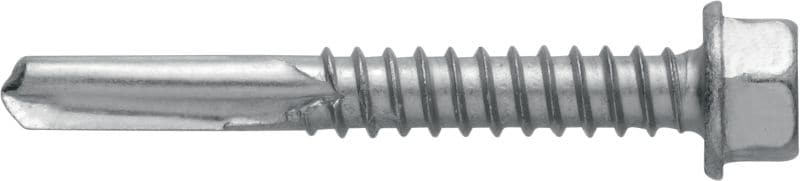

Self-drilling screw (A4 stainless steel) without washer for thick metal-to-metal fastenings (up to 15 mm)

  • Screw drive/recess type: Hexagon 8
  • Base materials: Carbon steel, Aluminium
  • Environmental conditions: Dry indoor, Indoor with temporary condensation, Outdoor with low pollution, Outdoor with moderate concentration of pollution, Outdoor, areas with heavy industrial pollution, Close proximity to roads, Coastal areas
premium

Choose options

Thickness fastened range MF
  • 4.6 - 56 mm
Drilling capacity range DC
  • 4.6 - 15 mm
Length
  • 82 mm
Pack size
  • 100
 Product options
Quantity
Pack
Total Pieces
100
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
INR 10,036.60
INR 100.37 / 1 each

Technical Data

Screw drive/recess type
Hexagon 8
Base materials
Carbon steel, Aluminium
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor with low pollution, Outdoor with moderate concentration of pollution, Outdoor, areas with heavy industrial pollution, Close proximity to roads, Coastal areas
Screw diameter d
5.5 mm
Length
82 mm
Screw head diameter
10 mm
Product class
Premium
Washer type
none

Documents

Approval document
Reference document
Technical information
Sustainability Documentation
Operating Instruction
pdf ETA-18/0880_for_SM_screws_2024-04-11_en, German [ 4.4 MB ]
pdf ETA-18/0880_for_SM_screws_2024-04-11_en, English [ 4.4 MB ]

Features & Applications

Features

  • Self-drilling screw for fast assembly in one step
  • For more reliable fastening in highly corrosive environments
  • Fast and robust drill tip for use on high-strength steel (up to grade S 450 GD) with Racing Tip technology – a wave-form cutting edge which removes chips much faster and helps prevent point burn-out
  • For more reliable fastenings with defined load values
  • Attractive final appearance – screw head can be coloured to match the façade

Applications

  • Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
  • Stainless steel (A4) for fastening in highly corrosive environments
  • Thick metal-to-metal connections (up to 15 mm)
  • Fastening aluminium façade systems
