MR Threaded Standoff Adapter

L123150 (210481)

L117900 (201374)

L117899 (201372)

L117898 (201373)

L117897 (201378)

L117691_cropped (205248)

L117696_cropped (205250)

L117700_cropped (205251)

L117704_cropped (205252)

L123150 (210481)

L117900 (201374)

L117899 (201372)

L117898 (201373)

L117897 (201378)

L117691_cropped (205248)

L117696_cropped (205250)

L117700_cropped (205251)

L117704_cropped (205252)

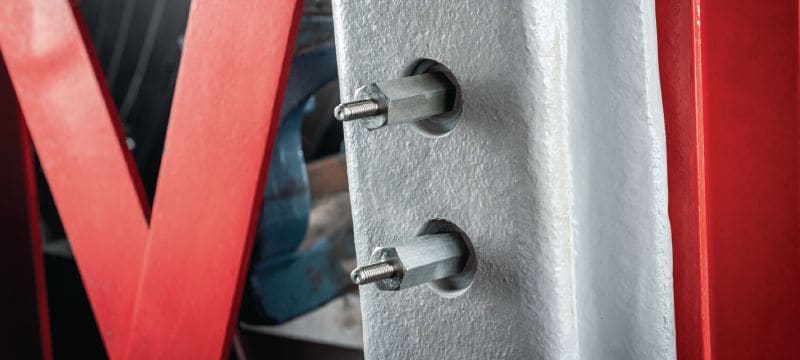

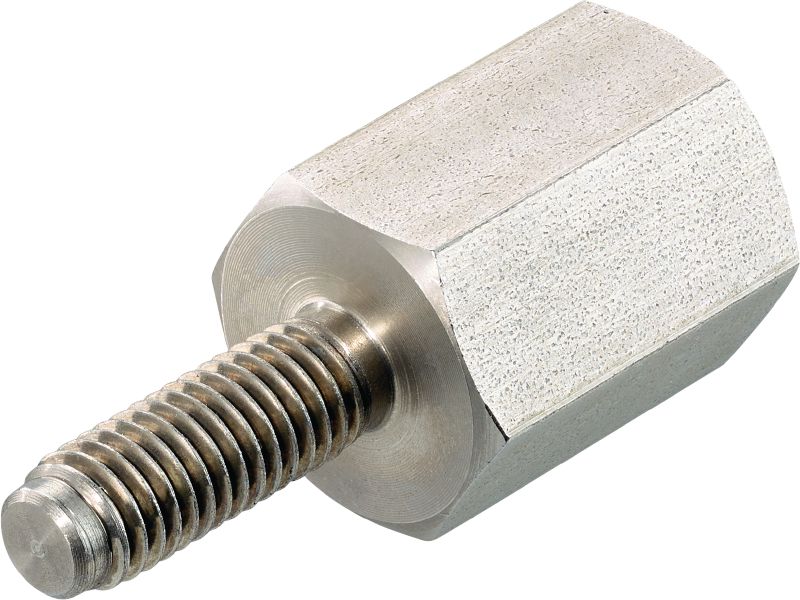

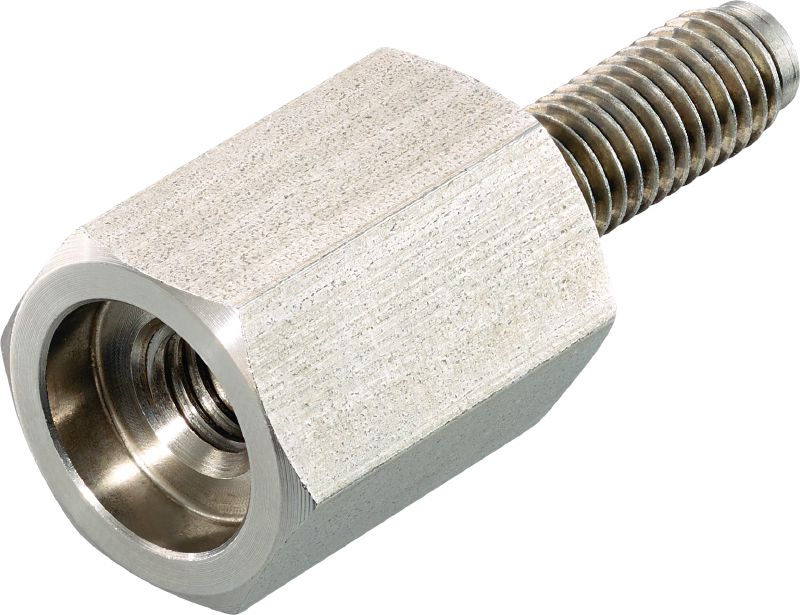

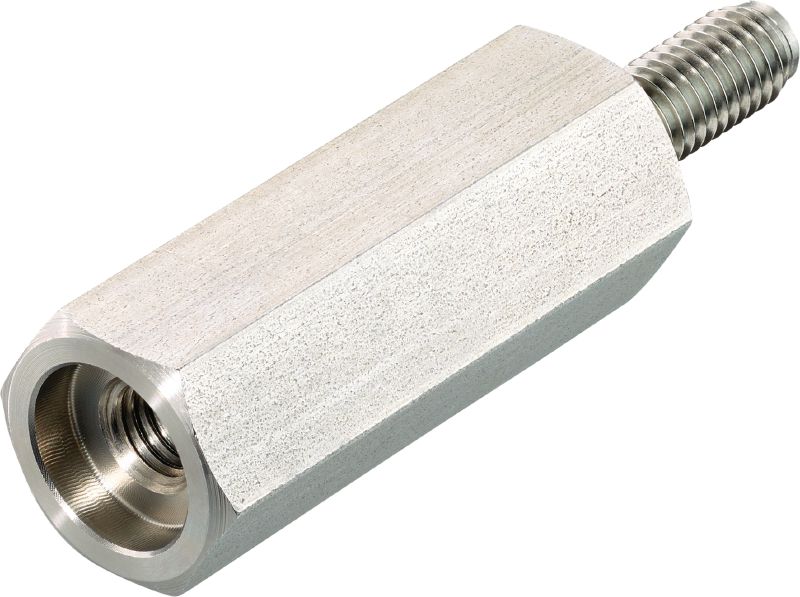

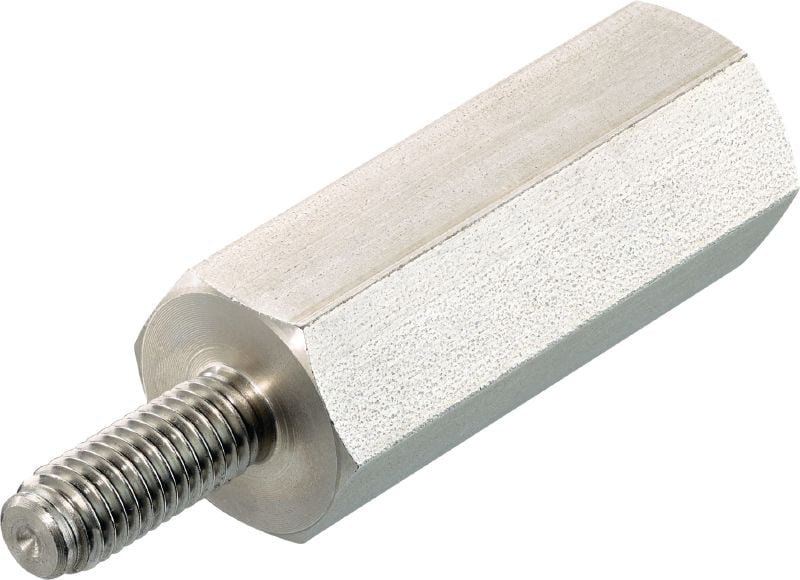

Male-Female stainless steel threaded standoff for fastening to passive fire protection (PFP) coated steel beams

Material: Stainless steel A4 (or equivalent)

Technical Data

Material

Stainless steel A4 (or equivalent)

Documents

Features & Applications

Features

Faster and more efficient – no welding/bracketing needed
Helps to prevent contact between fixtures and steel beams or plates – both uncoated or passive fire protection (PFP) coated beams
Versatile – you can use threaded standoffs as a spacer for a wide range of fastenings on intumescent PFP coated beams

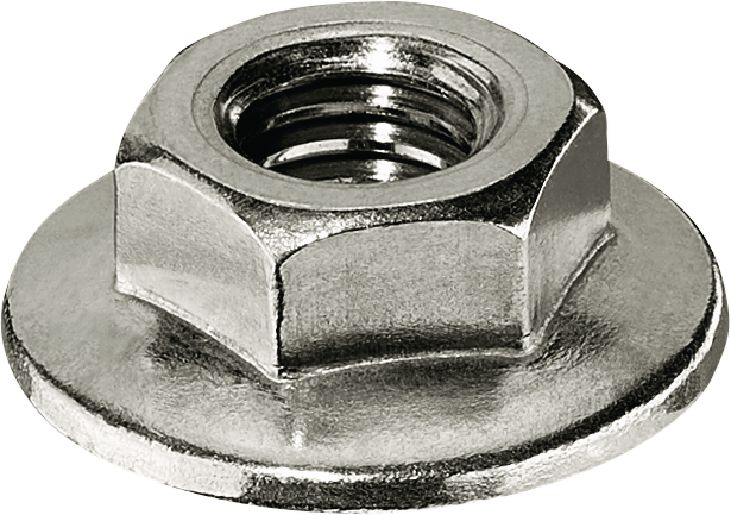

Wide M8 flange nut available for use with MQ strut channels

Applications

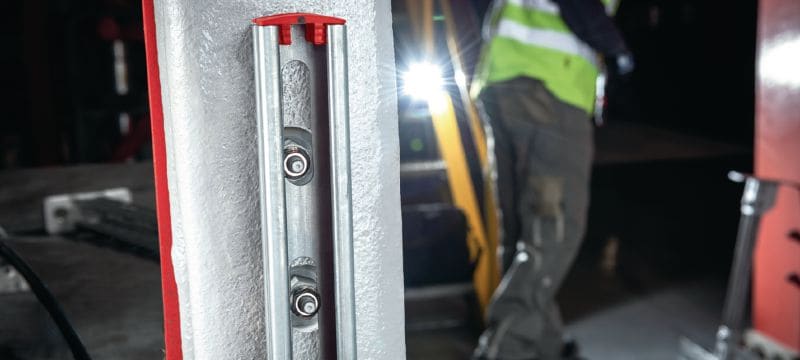

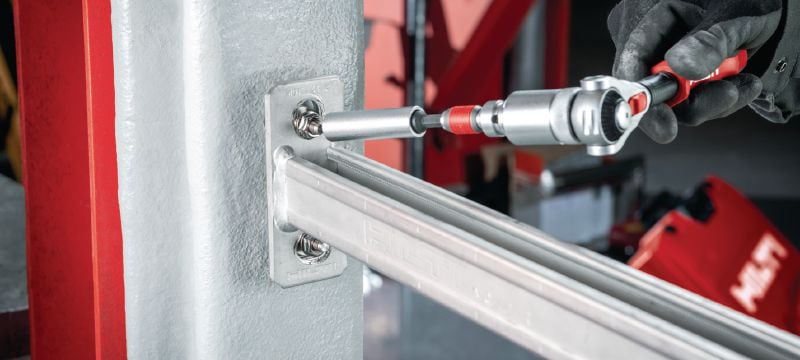

Fastening junction boxes, switchgear and instrumentation panels directly or using strut channels on PFP coated beams
Fastening cable trays and cable runs using strut channels or conduit clips on PFP coated beams
Fastening lighting, signage and other fixtures on PFP coated beams

For approval or certificate information, please see individual items.
