X-BT-ER Stainless steel threaded studs

Configurator
Technical Data
Documents
Features & Applications
Related Products
L112205 (191958)
L076570.tiff

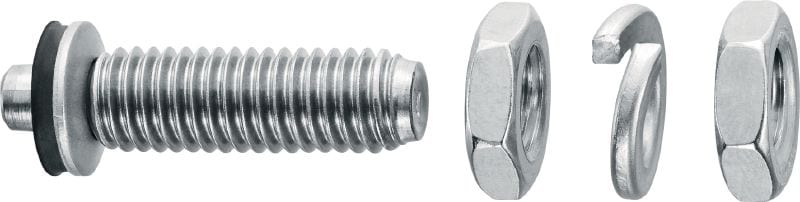

Threaded stud for electrical connectors on steel in highly corrosive environments

  • Base materials: Steel, Stainless steel, Cast iron
  • Minimum thickness of base material (steel): 8 mm
  • Corrosion protection: Corrosion protection equivalent to A4(316)
ultimate

Choose options

Thread size
  • M6
  • M10
Thread length
  • 20 mm
  • 24 mm
Pack size
  • 100
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From INR 97,300.00

Technical Data

Base materials
Steel, Stainless steel, Cast iron
Minimum thickness of base material (steel)
8 mm
Corrosion protection
Corrosion protection equivalent to A4(316)
Environmental conditions
Outdoor, areas with heavy industrial pollution
Material
Duplex stainless steel (1.4462)
Point type
Blunt tip
Approvals
ABS, BV, DNV, LR, UL
Product class
Ultimate

Documents

Technical information
Approval document
Reference document
Documentation
pdf X-BT Threaded Fastener Specification, 01/2024 (revision 02/2025), English [ 20 MB ]
pdf X-BT-ER Data Sheet, English [ 2.4 MB ]
pdf Direct Fastening Technology Manual, English [ 6 MB ]

Features & Applications

Features

  • No rework necessary on coated steel – corrosion protection remains intact
  • Enhanced safety – allows electrical current to flow through the stud and then discharges it properly into the base material
  • Portable, cordless system – eliminates the need for long electric supply cords
  • Fast – ideal for fastening directly to coated or treated steel
  • Corrosion-resistant – suitable for marine, offshore and petrochemical applications, power plants, etc.

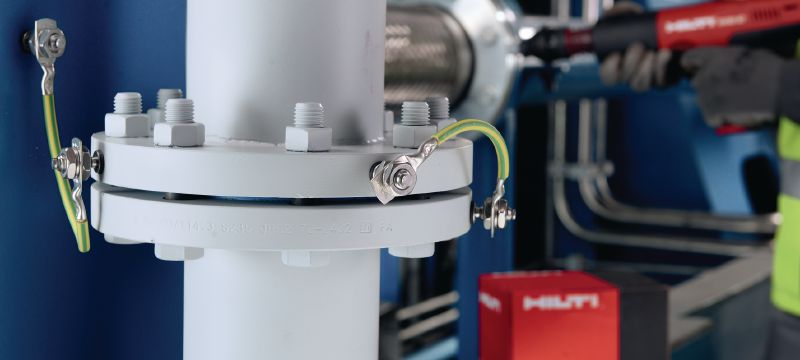

Applications

  • Functional bonding
  • Protective bonding
  • Terminal connection
  • Lightning protection
  • Bonding and earthing/grounding

For approval or certificate information, please see individual items.
