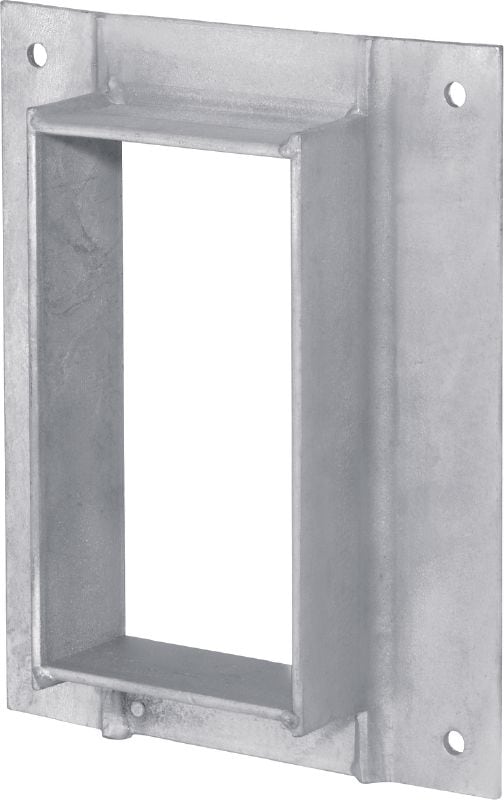

Transit frames for fitting modules to seal cable/pipe penetrations in concrete walls and floors

  • Application 01: Wall and floor penetrations in concrete, masonry and lightweight walls
  • Advantage 01: Available in hot-dip galvanised steel (grade S235 JR)

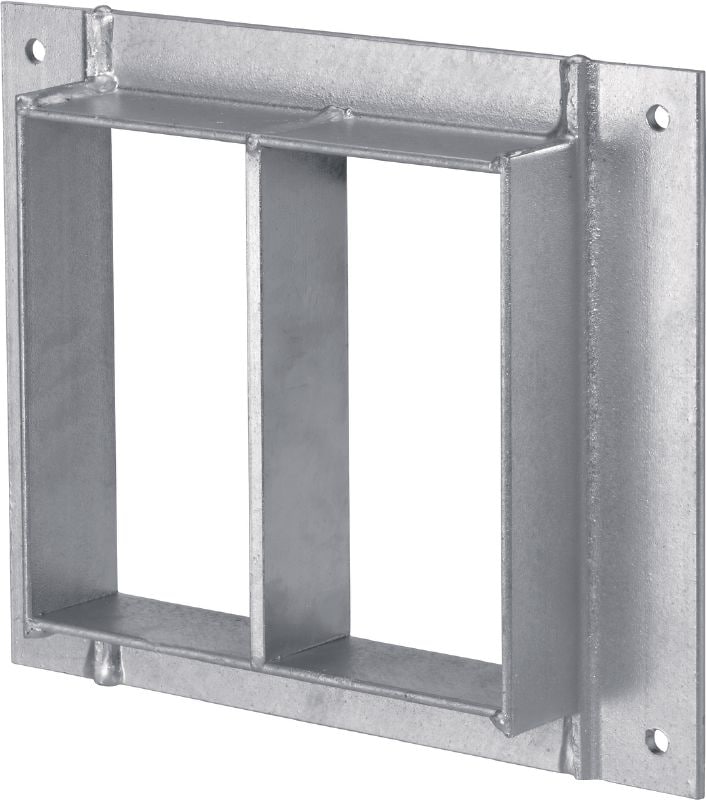

  • Advantage 02: Available with single- and multiple-frame windows in various sizes within single-row, double-row or triple-row frames

Choose options

Frame size
  • 2
  • 4
  • 6
  • 8
Number of frame columns
  • 1
  • 2
  • 3
  • 5
  • 6
  • 10
  • 12
  • 15
  • 16
  • 30
Base materials
  • Concrete
Pack size
  • 1
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From INR 6,032.00

Technical Data

Application 01
Wall and floor penetrations in concrete, masonry and lightweight walls
Advantage 01
Available in hot-dip galvanised steel (grade S235 JR)
Advantage 02
Available with single- and multiple-frame windows in various sizes within single-row, double-row or triple-row frames
Advantage 03
Big savings thanks to module interlinking, especially where cables run vertically through deck penetrations
Advantage 04
Wedge seals with only one bolt for quick installation
Advantage 05
Colour-coded adapter system makes inspection easy and reliable
Advantage 06
Made from 5 mm thick angle steel, partitioning bars between frame windows made from 8 mm flat steel
Advantage 07
Material quality: steel S235 JR, hot-dip galvanized
Storage and transportation temperature range
5 - 25 °C
Temperature resistance range
-40 - 50 °C
Free from
Halogen (halogen content <= 0.1 weight %)
Application temperature range
50 - -20 °C

Documents

Features & Applications

Features

  • Available in hot-dip galvanised steel (grade S235 JR)
  • Available with single- and multiple-frame windows in various sizes within single-row, double-row or triple-row frames

Applications

  • Wall and floor penetrations in concrete, masonry and lightweight walls

For approval or certificate information, please see individual items.
