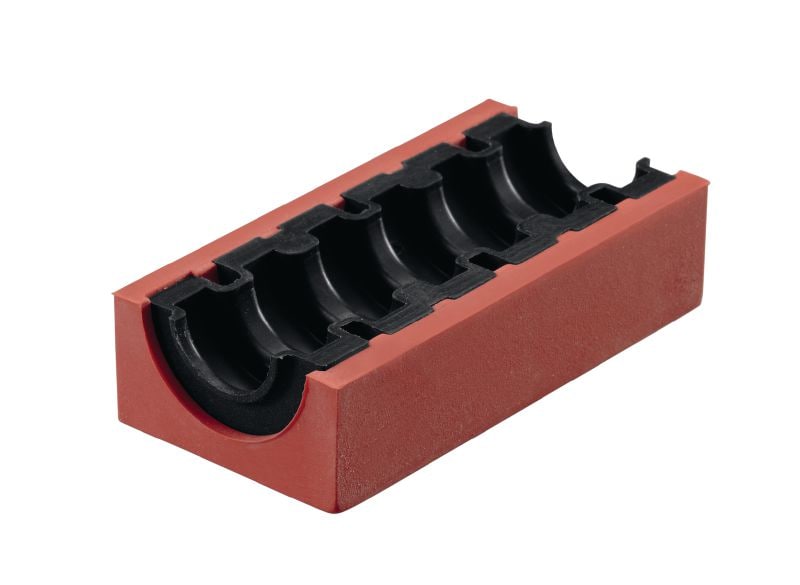

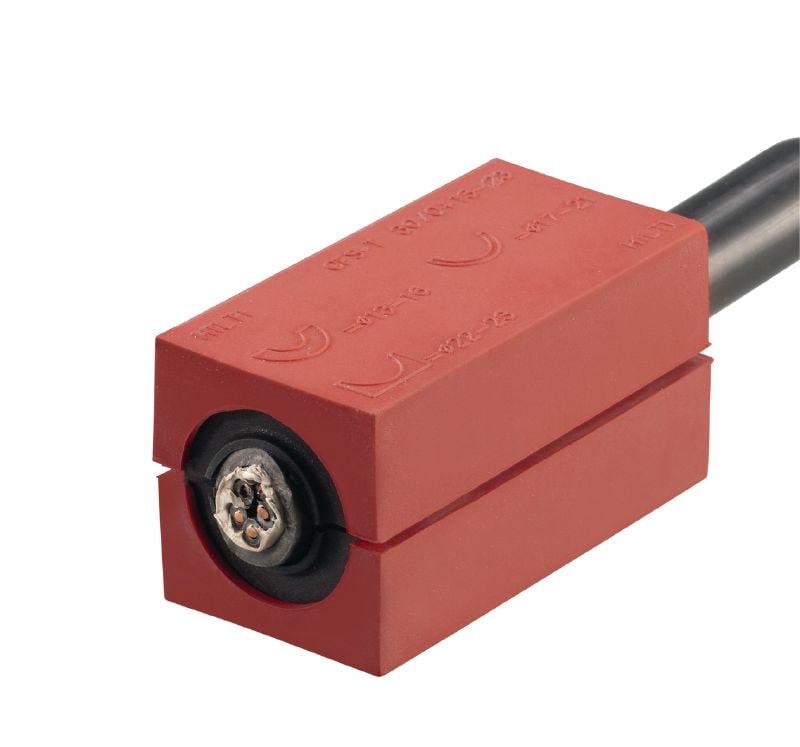

CFS-T cable module

Cable module CFS-T 90/52-78 #2060569

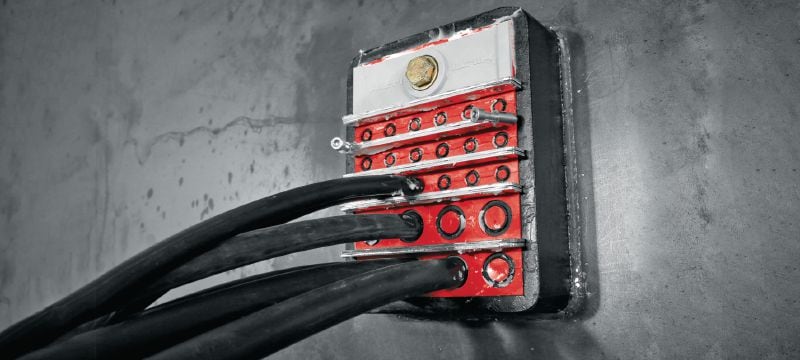

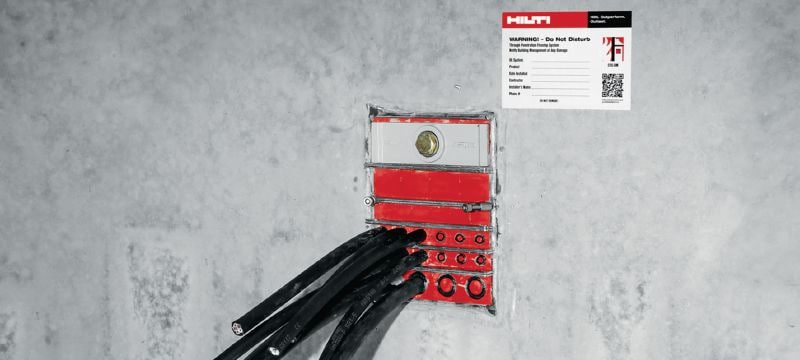

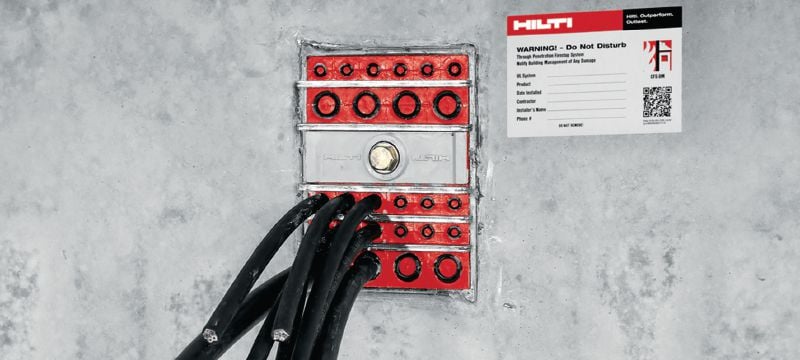

Modules to seal cables/pipes within a transit frame when high water- and gas-tightness and fire-resistance are required

  • Dimensions (LxWxH): 60 x 90 x 90 mm
  • Approvals: UL
  • Cable diameter - range: 52 - 78 mm

Choose options

Cable diameter - range
  • 3 - 9 mm
  • 5 - 12 mm
  • 13 - 23 mm
  • 23 - 33 mm
  • 34 - 51 mm
  • 52 - 78 mm
  • 79 - 99 mm
Module height
  • 15 mm
  • 20 mm
  • 30 mm
  • 40 mm
  • 60 mm
  • 90 mm
  • 120 mm
Base materials
  • Concrete, Steel
Pack size
  • 1
  • 4
  • 9
  • 16
  • 36
  • 64
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
INR 10,544.00
INR 10,544.00 / 1 each

Technical Data

Dimensions (LxWxH)
60 x 90 x 90 mm
Approvals
UL
Cable diameter - range
52 - 78 mm
Storage and transportation temperature range
5 - 25 °C
Temperature resistance range
-40 - 50 °C
Free from
Halogen (halogen content <= 0.1 weight %)
Application temperature range
50 - -20 °C
Reaction to fire class (EN 13501-1)
E

Documents

Features & Applications

Features

  • Simplified inventory management – only 7 different modules are needed to cover all cable diameters from 3 to 99 mm
  • Versatile adapter modules for quicker, easier accommodation of each cable diameter
  • Time-saving installation thanks to module interlinking, especially where cables run vertically through deck/floor penetrations
  • Colour-coded adapter system to make inspection easier and more reliable

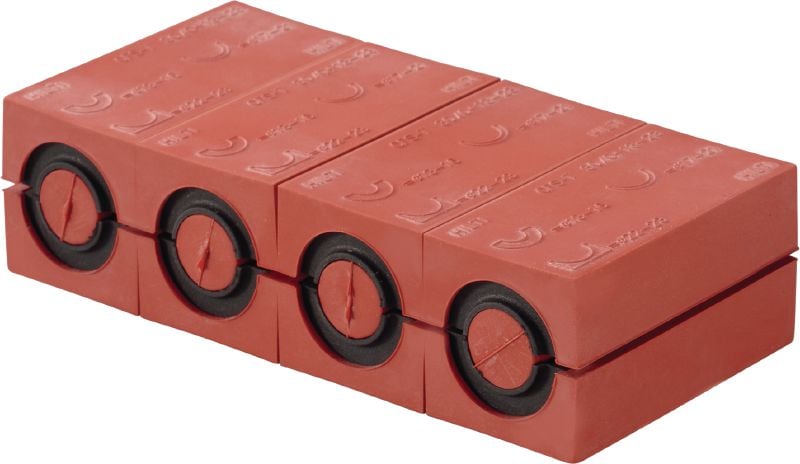

  • Cable modules (up to size 40 mm) are supplied in a joined-together state and can be easily separated for individual use.

Applications

  • Penetrations in shipbuilding and offshore applications
  • Penetrations in wind power structures
  • Telecom, data centre, downstream (oil and gas), petrochemical, control rooms, healthcare, emergency power and transmission towers
