CP-506 Smoke and acoustic sealant

Smoke and acoustic sealant CP 506 580ml #412590

Low-shrinkage, paintable smoke and acoustic sealant

  • Chemical basis: Water-based acrylic dispersion
  • Colour: White
  • Shelf life: 24 Months
ultimate

Choose options

Pack size
  • 1
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

INR 1,196.00

INR 1,196.00 / 1 each

Technical Data

Chemical basis
Water-based acrylic dispersion
Colour
White
Shelf life
24 Months 1
Acoustics performance
Test report available
Movement
±12.5% (ISO 11600) 2
Surface burning characteristics UL 723 (ASTM E84)
Flame spread: 10<BR>Smoke development: 10
Product class
Ultimate
W-rating
No
Application temperature - max.
40 °C
Tested in accordance with
UL 2079 (L-rating only), ASTM E84, ASTM G21, ASTM E90
Complementary products
Mineral wool, CFS-CO, CF-AS CJP
Intumescent
No
Min. elongation at break
275 %
Storage and transportation temperature - max.
35 °C
Application temperature range
5 - 40 °C
Storage and transportation temperature range
5 - 35 °C
Temperature resistance range
-20 - 80 °C
Re-penetration
Possible
Storage and transportation temperature - min.
5 °C
Temperature resistance - max.
80 °C
Can be painted
Yes
Mold and mildew performance
Class 1 (ASTM G21-96)
Application temperature - min.
5 °C
Temperature resistance - min.
-20 °C
Base materials
Concrete, Drywall, Masonry, Metal
  1. at 77°F/25°C and 50% relative humidity; from date of manufacture
  2. according to HTC 1250

Documents

Features & Applications

Features

  • Low shrinkage (< 25%) according to ASTM C 1241

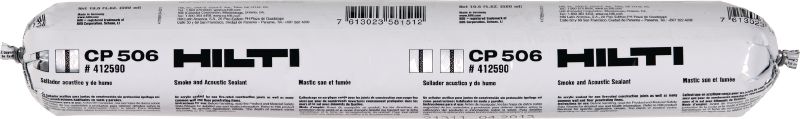

  • Soft foil packaging – reduces waste compared to hard cartridges

Applications

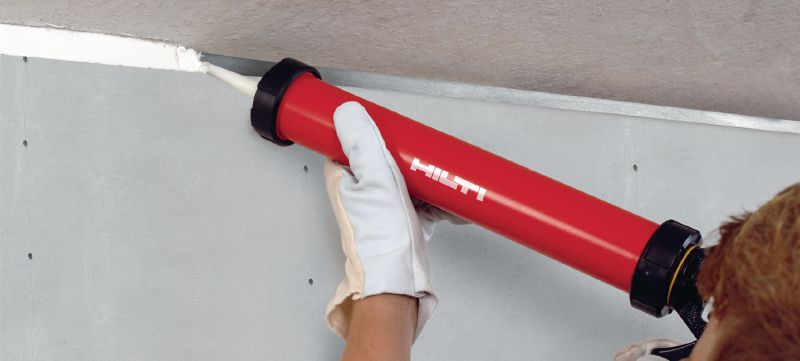

  • Sealing construction joints and through-penetration openings in non fire-rated acoustic barriers and smoke partitions
