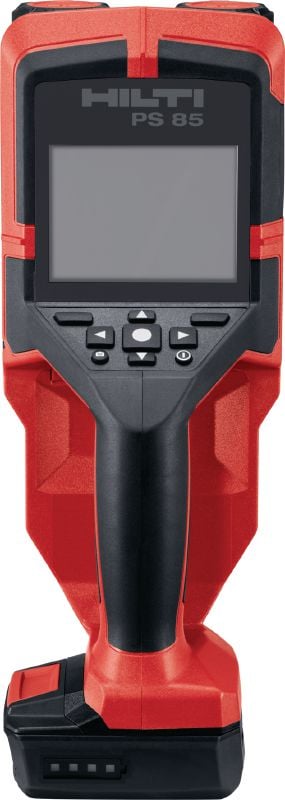

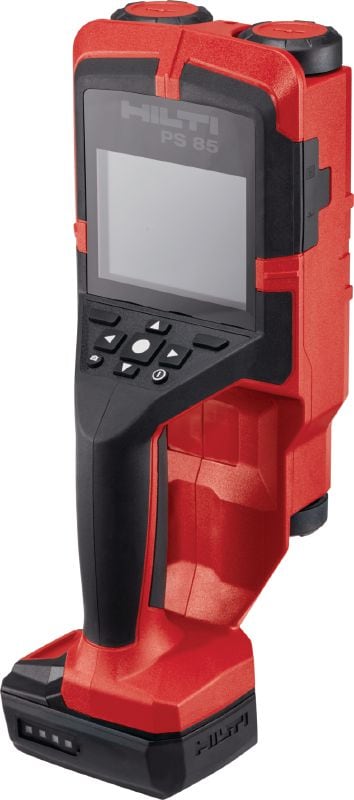

PS 85 Wall scanner

Easy-to-use wall scanner and stud finder for hit prevention when drilling or cutting near embedded objects

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From INR 121,506.00

Technical Data

Max. detection depth for object localization

200 mm ¹

Localisation accuracy

5to 10 mm (+/-) mm ²

Minimum distance between two neighbouring objects

40 mm

Data memory (scanner)

Approx. 200 scans (SD) approx. 10 scans (internal flash memory)

Maximum operating time

8 h

Working temperature range

-10 - 50 °C

Dimensions (LxWxH)

264 x 115 x 100 mm

Weight with batteries

1 kg

Performance and accuracy can be significantly affected by site conditions. See operating instructions.
Performance and accuracy can be significantly affected by site conditions. See operating instructions.

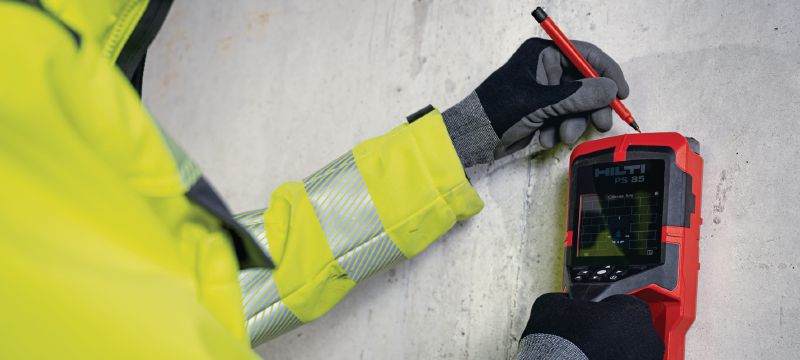

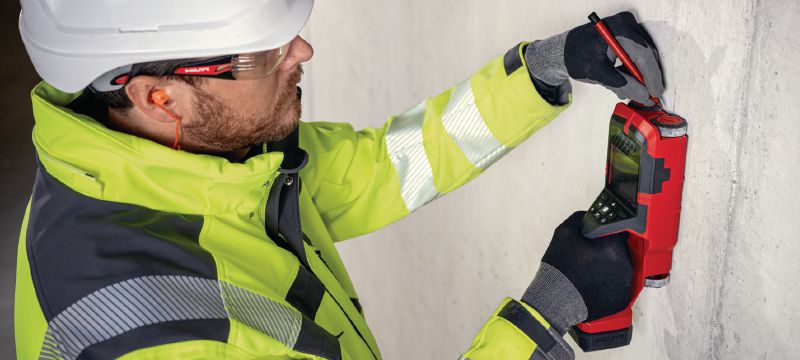

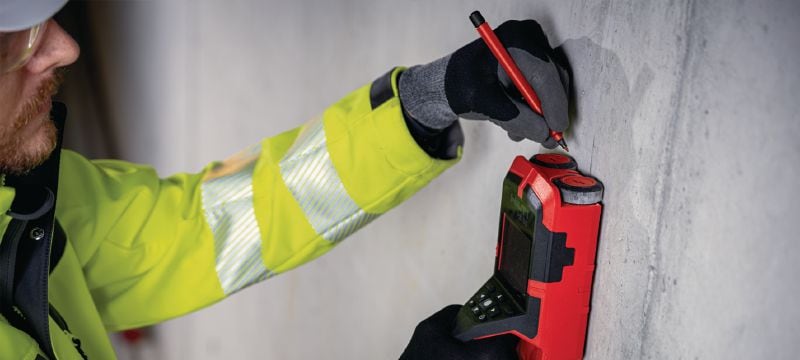

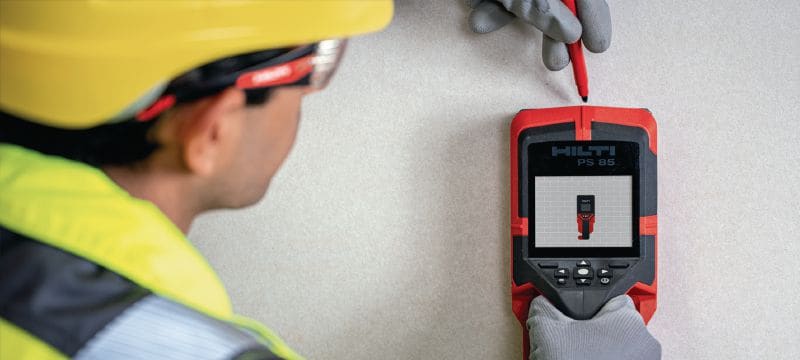

Versatile and user-friendly wall scanner to help you avoid damage caused by drilling in the wrong place
Easier to use – large display, efficient menus and the option to export scan data via SD card
Upgraded ergonomics – light with large handle to keep the tool firmly in your grip
Built to last – shock- and dust- resistant to better withstand construction site conditions

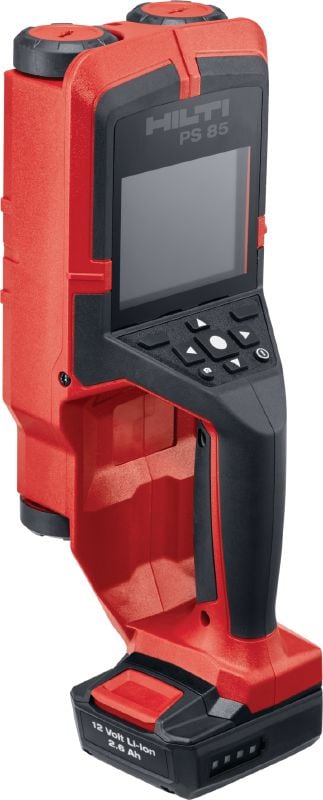

Hilti battery platform – power this wall scanner using the same Li-ion batteries (2.6 and 4.0 Ah) as all your other Hilti 12V cordless tools

Locating embedded objects for hit prevention when drilling, coring, cutting or slitting (up to 85 mm depth, depending on material) on the wall
Estimating the material and size of hidden objects – multiple sensors for rebar, live wires, wooden substructures, metal and plastic pipes

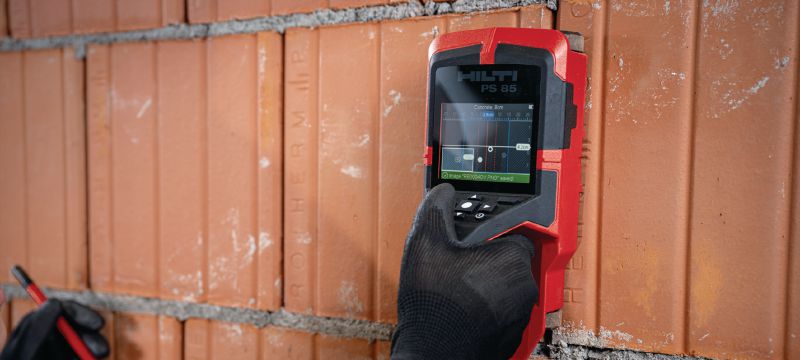

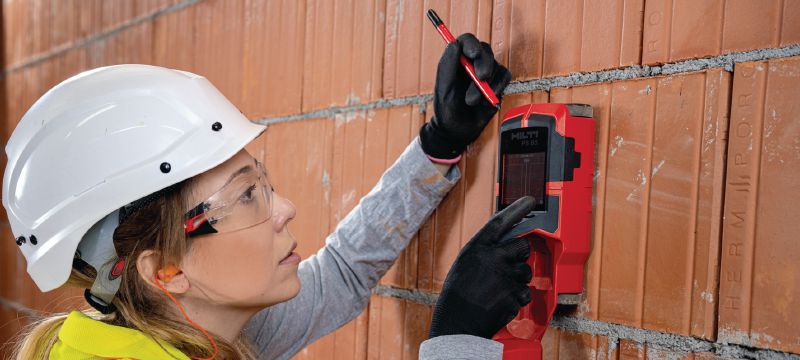

Equipped to scan through concrete (wet and dry), brick, plasterboard and tiles
Locating embedded objects for hit prevention when drilling, coring, cutting or slitting (up to 3-3/8” depth, depending on material) on the wall

For approval or certificate information, please see individual items.
