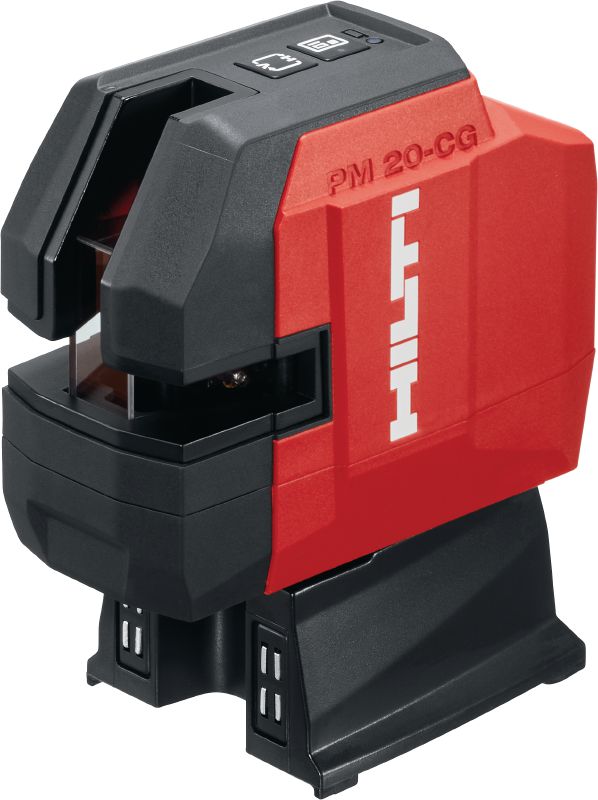

PM 20-CGE High-precision plumb and cross line laser

High-precision green beam combi-laser with 2 queues and 4 points for plumbing, leveling, aligning and squaring

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From INR 54,180.00

Technical Data

Accuracy

±2 mm at 10 m

Max. operating distance (diameter)

40 m (lines), 100 m (lines, with receiver) ¹

Maximum operating time

8 h

Battery type

4 x 1.5 V (AA)

Self-levelling range at room temperature

+/-4° °

Self-levelling time

3 s

Horizontal fan angle

200 °

Vertical fan angle

160 °

IP protection class

IP 54 (EN 60529)

Laser type

Line and point

Operating distance can be significantly affected by site conditions. See operating instructions.

Higher laser precision – for leveling and plumbing tasks with strict tolerances, such as lift installation, façade or metal fabrication
High-speed layout – compact, self-levelling cross line laser with one-button operation so that you can get started with minimal setup time
Better visibility up to 20 m – equipped with green beam for easier use indoors and in bright light

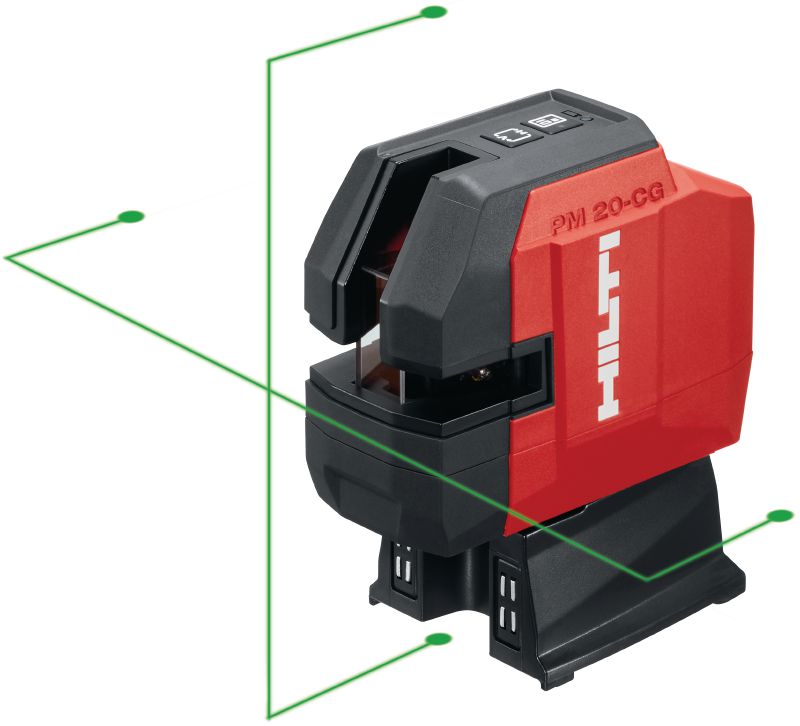

Ultimate versatility – laser cross, five dots and slope mode make this line laser level suitable for virtually all alignment and layout work, even on inclines
Built for jobsite conditions – IP 54 rated protection against dust and moisture and class 2 laser which requires no special precautionary measures

Vertical alignment of lift rails
Checking, transferring and aligning reference points in lift shafts or on façades
Leveling and aligning lift doors and façade elements
Transferring fastening points from floors to ceilings (laser plumb bob)
Transferring reference heights

For approval or certificate information, please see individual items.
