MQK-41-R bracket

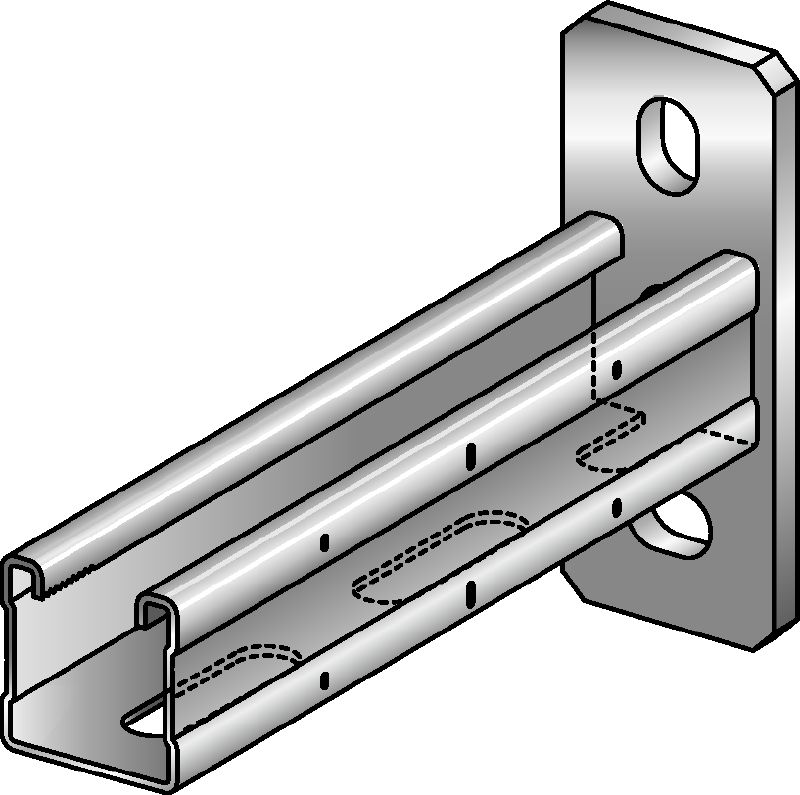

Bracket MQK-41/300-R #304005

Stainless steel (A4) C-Channel bracket for medium-duty applications

  • Material thickness: Channel: 2 mm, Baseplate: 8 mm
  • Material composition: Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L
  • Surface finish: Outdoor Plus - Stainless Steel

Choose options

Profile
  • MQ-41-R
Length - L
  • 300 mm
Pack size
  • 10
Product options
Quantity
Pack
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

INR 100,800.00

INR 10,080.00 / 1 each

Technical Data

Material thickness
Channel: 2 mm, Baseplate: 8 mm
Material composition
Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Profile
MQ-41-R
Weight
997 g

Documents

Features & Applications

Features

  • C-profile with serrated edges – for higher pull-out and shear capacity
  • Engineered for higher shear load capacity and easier assembly
  • Rectangular base plate – strengthens the connection to the supporting material and increases rigidity
  • Pre-marked dimensions – for quicker installation, assembly and measurement
  • Single channel, slotted

Applications

  • Stand-alone use on ceilings, walls and floors or in conjunction with strut channel systems
  • Installation in industrial atmospheres or areas with high levels of condensation
  • Installing cable trays, air ducts and pipe supports
  • Recommended for use in corrosive environments
