MT-90 OC Box profile

LCG003285_v1 (217077)
LCG003480_v1_cropped (224133)
12_IS_MT-90_0001 (218621)

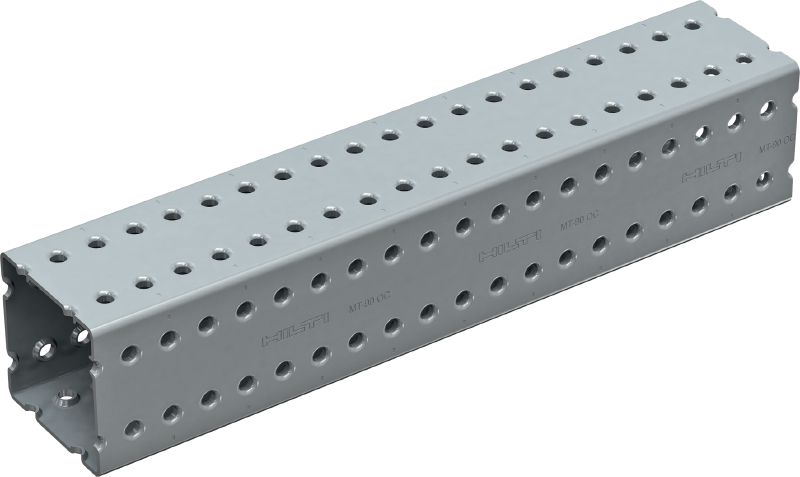

heavy-duty box profile for use with MT-TFB components in outdoor environments

  • Material composition: S350 or better steel
  • Surface finish: Outdoor Coated - ZM
  • Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Customers also searched for box profile, heavy duty supports, MT-90, modular pipe rack or girder.

Choose options

Pack size
  • 3
  • 6
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From INR 14,620.00

Technical Data

Material composition
S350 or better steel
Surface finish
Outdoor Coated - ZM
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

pdf Corrosion handbook, English [ 9.4 MB ]

Features & Applications

Features

  • Economical – high load/weight ratio make MT girders an efficient alternative to welding for virtually any heavy-duty MEP supports and modular structures
  • Complexity kept to the minimum – optimising logistical and on-site operations, as well as providing simplicity in installation
  • Simpler to design – you can use Hilti MT components for all MEP installations from the lightest trapeze to the heaviest-duty modular framing
  • Simpler to instal – compatible with the innovative MT thread-forming bolt, enabling the use of a wide range of MT connectors and baseplates and avoiding the need for nuts
  • Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering

Applications

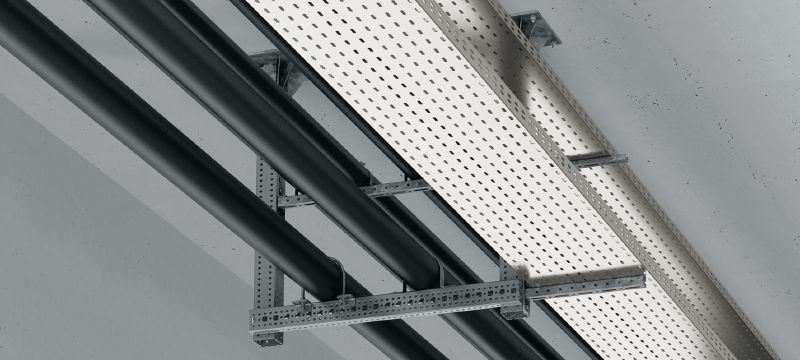

  • Floor-mounted MEP support structures with heavy loads and extra-long spans
  • Ceiling-mounted MEP support structures with heavy loads and extra-long spans
  • Wall-mounted cantilever brackets for heavy-duty, industrial pipes
  • Modular 3D framing to support industrial pipes and other heavy-duty building services
  • Suitable for use in moderately corrosive environments

For approval or certificate information, please see individual items.
