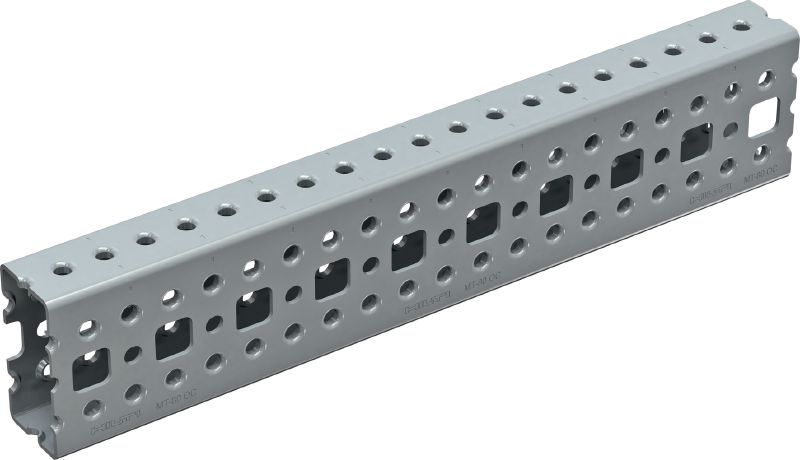

MT-80 OC Box profile

LCG003284_v1 (217078)

L140650_cropped (213618)

11_IS_MT-80_0001 (218620)

LCG003284_v1 (217078)

L140650_cropped (213618)

11_IS_MT-80_0001 (218620)

heavy-duty box profile for use with MT-TFB components in outdoor environments

Material composition: S350 or better steel
Surface finish: Outdoor Coated - ZM
Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Technical Data

11_IS_MT-80_0001 (218620)

Material composition

S350 or better steel

Surface finish

Outdoor Coated - ZM

Environmental conditions

Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Features & Applications

Features

Economical – high load/weight ratio make MT girders an efficient alternative to welding for virtually any heavy-duty MEP supports and modular structures
Complexity kept to the minimum – optimising logistical and on-site operations, as well as providing simplicity in installation
Simpler to design – you can use Hilti MT components for all MEP installations from the lightest trapeze to the heaviest-duty modular framing
Simpler to instal – compatible with the innovative MT thread-forming bolt, enabling the use of a wide range of MT connectors and baseplates and avoiding the need for nuts
Enables direct girder-to-girder fixation, without connectors for a highly efficient solution

Applications

Floor-mounted MEP support structures with heavy loads and extra-long spans
Ceiling-mounted MEP support structures with heavy loads and extra-long spans
Wall-mounted cantilever brackets for heavy-duty, industrial pipes
Modular 3D framing to support industrial pipes and other heavy-duty building services
Suitable for use in moderately corrosive environments

For approval or certificate information, please see individual items.
