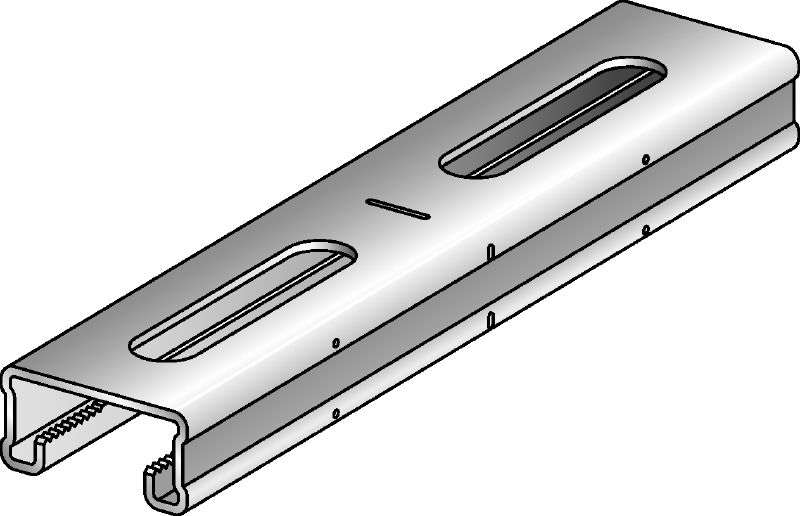

MQ-21-RA2 C-Channel profile
Stainless steel (A2) C-Channel profile for light-duty applications
- Height: 20.6 mm
- Material thickness: 2 mm
- Material composition: Stainless steel, 1.4301 (A2) - EN 10088
Choose options
Length
- 3 m
- 6 m
Pack size
- 3
- 6
Quantity
Packs
Total Pieces
1
Discounted net
From INR 6,288.00
Technical Data
Height
20.6 mm
Material thickness
2 mm
Material composition
Stainless steel, 1.4301 (A2) - EN 10088
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Features & Applications
Features
- C-profile with serrated edges – for higher pull-out and shear capacity
- Optimised hole pattern – for more flexible attachment options
- Pre-marked dimensions – for rapid installation, assembly and cutting
- Versatile and flexible due to modular channel system
- Sound insulation elements available for all MQ installation channels
Applications
- Recommended for installation in industrial atmospheres or areas with heavy condensation
- Modular support systems for piping
- Modular support systems for air ducts and cable trays
- Modular support systems for 3D structures
- Wall-mounted installation
For approval or certificate information, please see individual items.
