MQ-21 D-R C-Channel profile

Configurator
Technical Data
Features & Applications
Related Products
li03540.tif
MQ-21 D
MQ-21 D-RA2 3m, MQ-21 D-RA2 6m, MQ-21 D-R 3m, MQ-21 D-R 6m

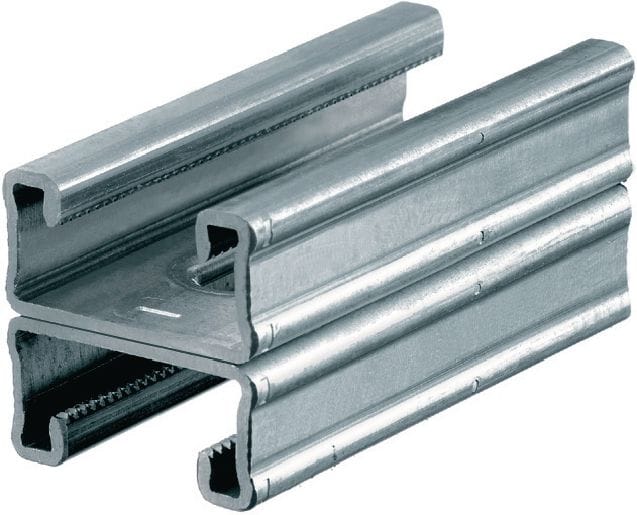

Stainless steel (A4) double C-Channel profile for medium-duty applications

  • Height: 41 mm
  • Material thickness: 2 mm
  • Material composition: Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L

Choose options

Length
  • 3 m
  • 6 m
Pack size
  • 3
  • 6
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From INR 15,020.80

Technical Data

Details

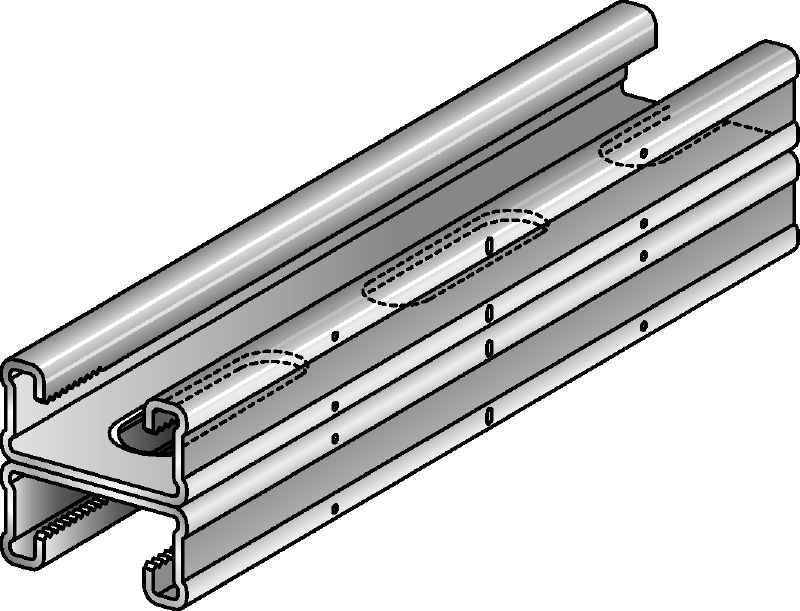

Technical illustrations
Height
41 mm
Material thickness
2 mm
Material composition
Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)

Features & Applications

Features

  • C-profile with serrated edges – for higher pull-out and shear capacity
  • Installation on both sides possible – for high application flexibility
  • Pre-marked dimensions – for rapid installation, assembly and cutting
  • Versatile and flexible due to modular channel system
  • Sound insulation elements available for all MQ installation channels

Applications

  • Recommended for installation in industrial atmospheres or areas with heavy condensation
  • Modular support systems for piping
  • Modular support systems for air ducts and cable trays
  • Modular support systems for 3D structures
  • Wall-mounted installation

For approval or certificate information, please see individual items.
