MQ-41-R C-Channel profile

I.-Channel MQ-41-R 6m #303993

Configurator
Technical Data
Documents
Features & Applications
Related Products
18070.tif
MQ-41

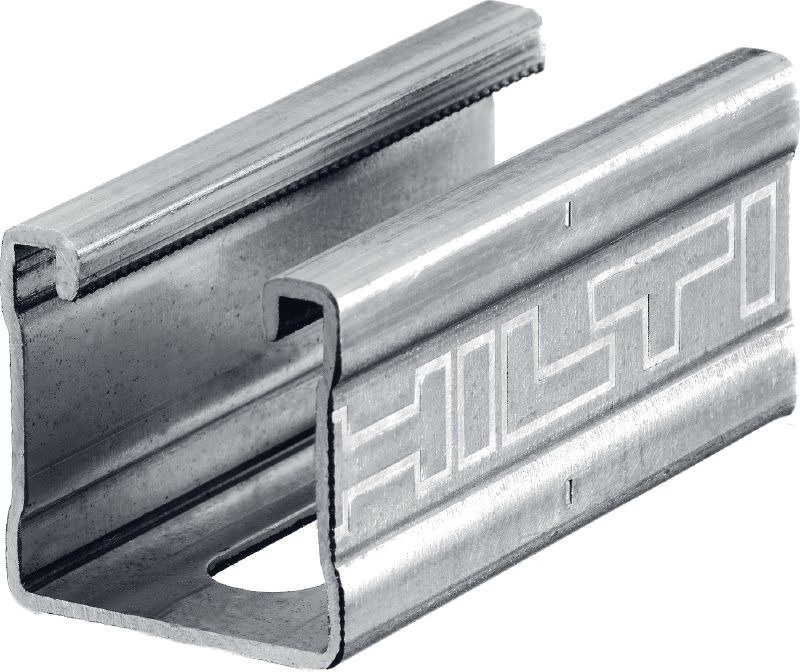

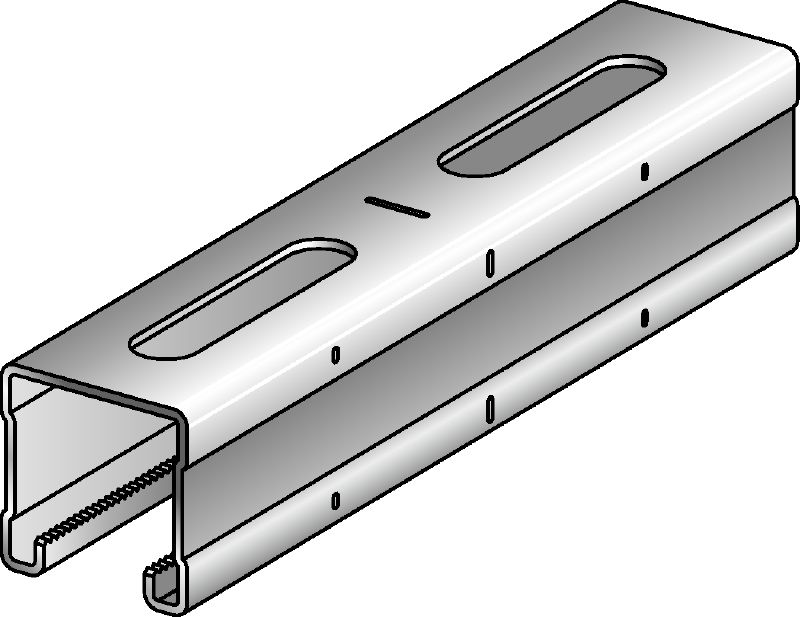

Stainless steel (A4) C-Channel profile for medium-duty applications

  • Height: 41.3 mm
  • Material thickness: 2 mm
  • Material composition: Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L

Choose options

Length
  • 6 m
Pack size
  • 6
 Product options
Quantity
Packs
Total Pieces
6
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
INR 9,584.80
INR 9,584.80 / 1 m

Technical Data

Height
41.3 mm
Material thickness
2 mm
Material composition
Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Weight
12720 g

Documents

pdf Corrosion handbook, English [ 9.6 MB ]

Features & Applications

Features

  • C-profile with serrated edges – for higher pull-out and shear capacity
  • Optimised hole pattern – for more flexible attachment options
  • Pre-marked dimensions – for rapid installation, assembly and cutting
  • Versatile and flexible due to modular channel system
  • Sound insulation elements available for all MQ installation channels

Applications

  • Recommended for installation in industrial atmospheres or areas with heavy condensation
  • Modular support systems for piping
  • Modular support systems for air ducts and cable trays
  • Modular support systems for 3D structures
  • Wall-mounted installation
