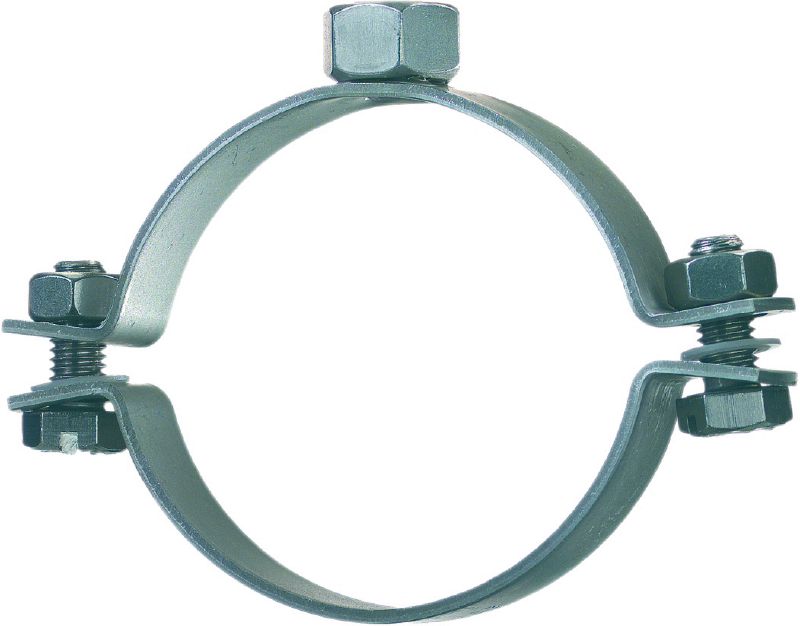

Stainless steel (A4) pipe clamp without sound insulation for light-duty applications

  • Material composition: Stainless steel, 1.4571/1.4404 (A4) - EN 10088, AISI 316Ti / AISI 316L
  • Surface finish: Outdoor Plus - Stainless Steel
  • Environmental conditions: Outdoor high pollution (C4 – high / C5)
standard

Choose options

Clamping range - D
  • 15 - 19 mm
  • 19 - 23 mm
  • 25 - 29 mm
  • 32 - 36 mm
  • 34 - 38 mm
  • 40 - 44 mm
  • 46 - 52 mm
  • 58 - 62 mm
Thread connection - M
  • M8
  • M10
Nominal pipe size (imperial)
  • 3/8 in
  • 1/2 in
  • 3/4 in
  • 1 in
  • 1-1/4 in
  • 1-1/2 in
  • 2 in
Pack size
  • 10
  • 25
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From INR 20,600.00

Technical Data

30058_K3_M01.eps
30058_K3.eps
30058_M01.eps
Material composition
Stainless steel, 1.4571/1.4404 (A4) - EN 10088, AISI 316Ti / AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Product class
Standard

Documents

Features & Applications

Features

  • High resistance to corrosion (A4 stainless steel)
  • Short connection head allows installation close to a wall, floor or ceiling
  • Pipe ring with verified fire resistance as per DIN 4102, part 2
  • Closure screw secured to prevent loss
  • Short connection boss allows installation close to walls and ceilings

Applications

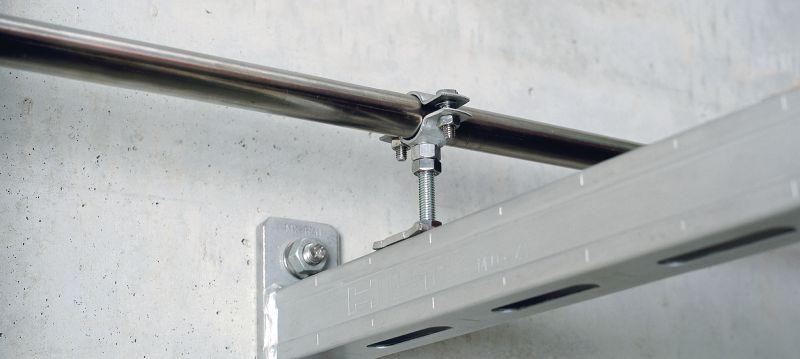

  • Light-duty pipe installations up to 2"
  • Heating, plumbing and industry applications in corrosive environments
  • Mounting pipes in food industry and in water treatment
  • Water treatment

For approval or certificate information, please see individual items.
