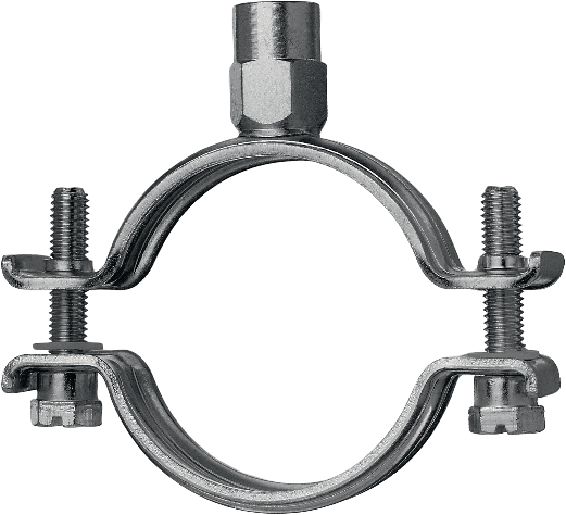

Galvanised sprinkler pipe clamp with VdS, FM and UL approvals for fire sprinkler applications

  • Material composition: S235JRG - DIN EN 10025
  • Surface finish: Indoor Coated - Electro galvanised
  • Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Technical Data

28514_B_H_J.eps
28514_B.eps
28514_H.eps
28514_J.eps
Material composition
S235JRG - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

Features & Applications

Features

  • Swaged steel pipe clamp section for greater stiffness
  • Clamping screws (slotted hexagon head, M8) pre-attached to pipe clamp to help prevent loss
  • Sizes up to 2" equipped with M8/M10 flexible connection head

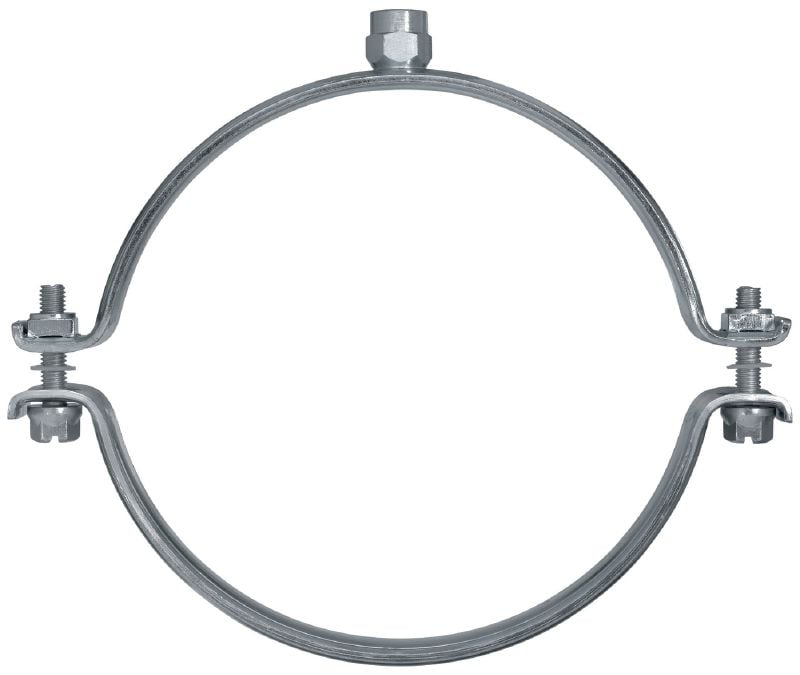

  • Sizes larger than 68/72 mm with solid, welded-on nuts for better mounting of clamping screws

Applications

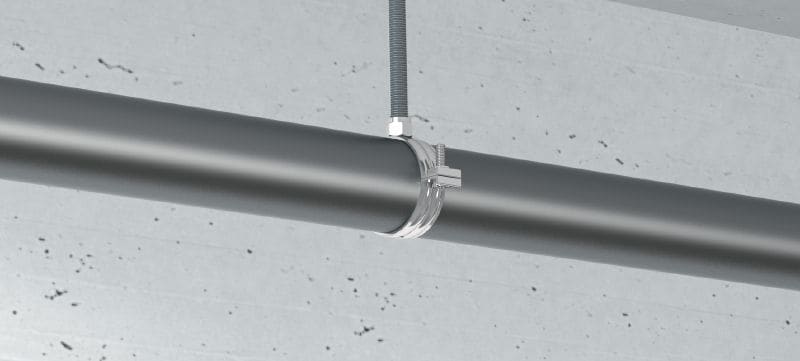

  • single-point fastening for fire sprinkler applications
  • Recommended for use in dry, interior environments
  • Pipe rings for use in dry interiors only

For approval or certificate information, please see individual items.
