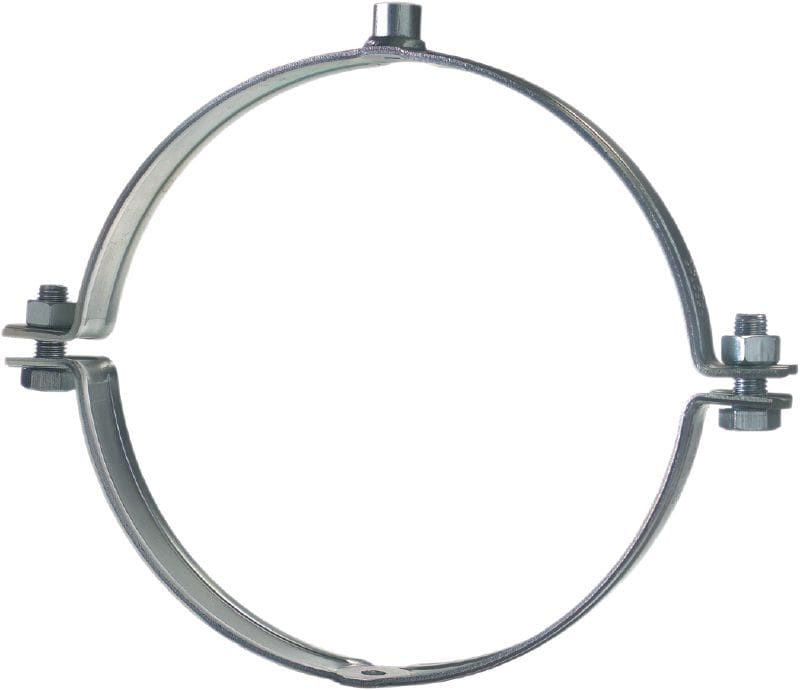

MP-MX heavy-duty pipe clamp

Heavy-d. pipe ring MP-MX 355 M16 #372290

Galvanised pipe clamp without sound insulation for extra heavy-duty applications

Clamping range - D: 348 - 356 mm
Thread connection - M: M16
Maximum load - F: 13000 N

standard

Choose options

Clamping range - D

348 - 356 mm

Thread connection - M

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

INR 10,080.00

INR 10,080.00 / 1 each

Technical Data

Clamping range - D

348 - 356 mm

Thread connection - M

M16

Maximum load - F

13000 N

Material composition

DD11 - DIN EN 10111

Surface finish

Indoor Coated - Electro galvanised

Environmental conditions

Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Clamping screw

M16

Tightening torque

20 Nm

Cross section thickness - s

5 mm

Cross section width - b

50 mm

Width - B

460 mm

Distance between holes - A

408 mm

Product class

Standard

Distance centre pipe to top - h

199 mm

Documents

Features & Applications

Features

Solid connection head, welded all around
Strong clamping screws for high load values
Suitable for installing pipes under dynamic loading if used with vibration-damping components

Applications

heavy-duty pipe installations up to 508 mm

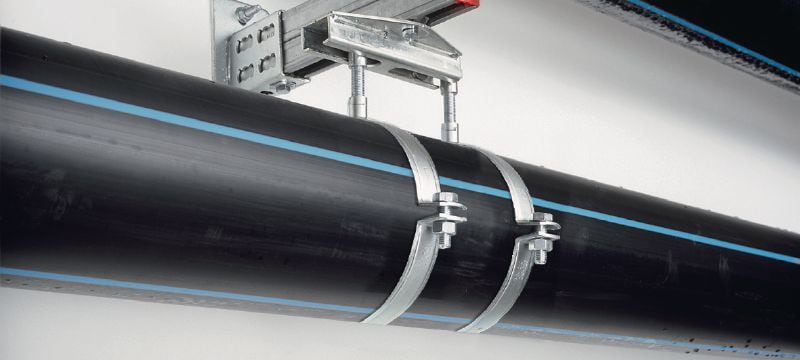

Installing industrial pipes
Mounting process and control queues
heavy-duty plumbing and heating applications
Suitable for use in conjunction with vibration-reducing elements for pipework under dynamic loading
