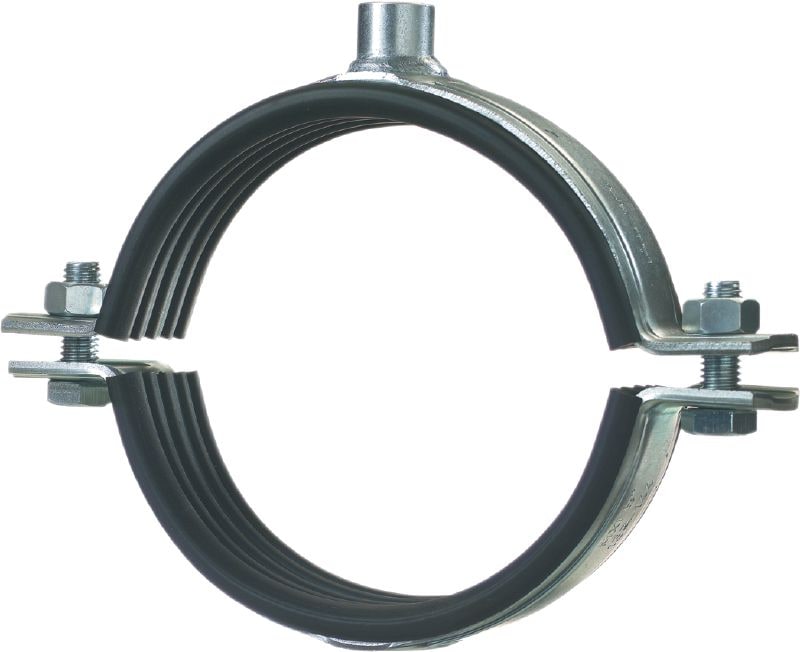

MP-MXI heavy-duty pipe clamp

Heavy-d. pipe ring MP-MXI 244.5 M16 #372239

Galvanised pipe clamp with sound insulation for extra heavy-duty applications

  • Clamping range - D: 244 - 253 mm
  • Thread connection - M: M16
  • Maximum load - F: 7500 N
premium

Choose options

Clamping range - D
  • 88 - 93 mm
  • 108 - 116 mm
  • 139 - 144 mm
  • 163 - 170 mm
  • 192 - 200 mm
  • 219 - 228 mm
  • 244 - 253 mm
  • 267 - 274 mm
  • 275 - 282 mm
  • 315 - 324 mm
  • 348 - 356 mm
  • 364 - 372 mm
  • 400 - 409 mm
  • 454 - 462 mm
Thread connection - M
  • M10, M12
  • M16
Nominal pipe size (imperial)
  • 3 in
  • 4 in
  • 5 in
  • 6 in
Pack size
  • 1
  • 10
  • 25
Product options
Quantity
Pack
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
INR 65,280.00
INR 6,528.00 / 1 each

Technical Data

60290_X04.eps
Clamping range - D
244 - 253 mm
Thread connection - M
M16
Maximum load - F
7500 N
Noise reduction
16 dB (A)
Temperature resistance
-50 - 120 °C
Material composition
DD11 - DIN EN 10111
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Insulation material
EPDM rubber
Hardness insulation material
50° ±5° Shore A
Clamping screw
M16
Tightening torque
20 Nm
Cross section thickness - s
4 mm
Cross section width - b
40 mm
Width - B
355 mm
Distance between holes - A
317 mm
Product class
Premium
Distance centre pipe to top - h
158 mm

Documents

Features & Applications

Features

  • Solid connection head, welded all around
  • Strong clamping screws for high load values
  • Non-slip, pre-fitted profiled rubber inlay
  • Suitable for installing pipes under dynamic loading if used with vibration-damping components

Applications

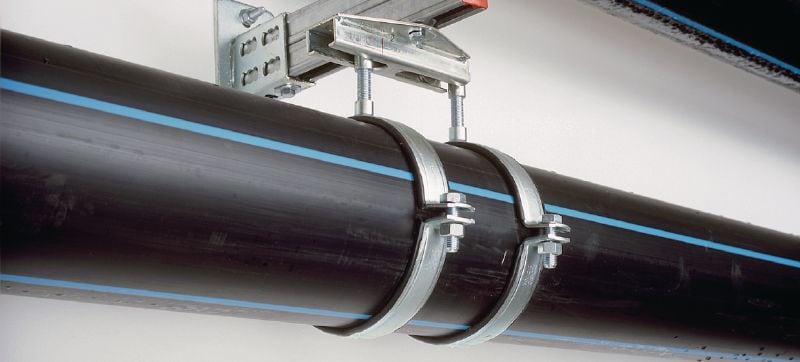

  • heavy-duty pipe installations up to 508 mm
  • Installing industrial pipes
  • Mounting process and control queues

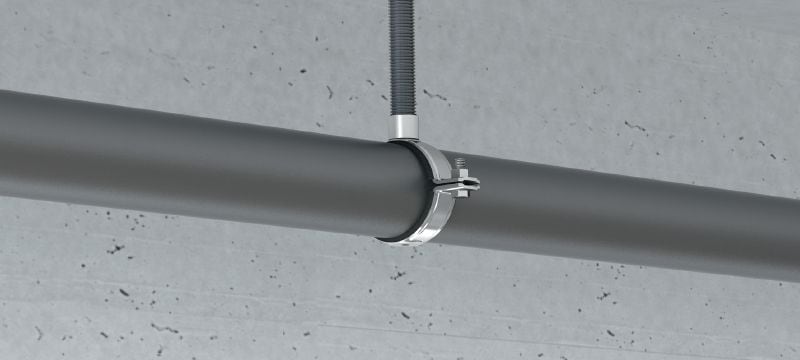

  • Installation of industrial pipework
