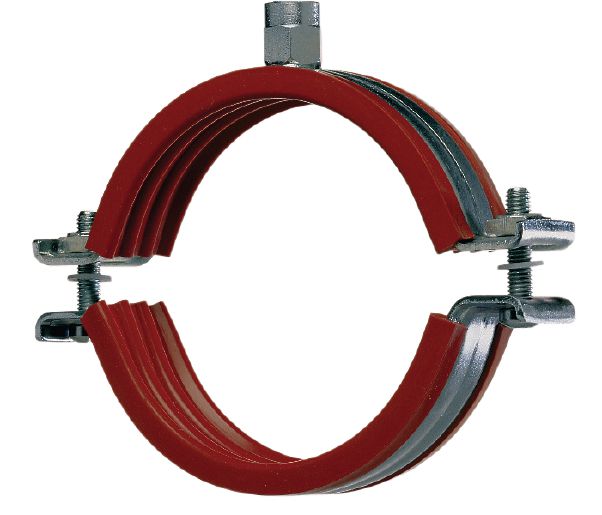

MP-MIS heavy-duty pipe clamp
Galvanised pipe clamp with high temperature resistance inlay for heavy-duty applications
- Noise reduction: 23 dB (A)
- Temperature resistance: -60 - 200 °C
- Material composition: S235JRG - DIN EN 10025
premium
Choose options
Clamping range - D
- 162 - 168 mm
- 217 - 224 mm
Thread connection - M
- M10, M12
- M16
Nominal pipe size (imperial)
- 6 in
- 8 in
Pack size
- 10
Quantity
Packs
Total Pieces
1
Discounted net
From INR 23,000.00
Technical Data
Noise reduction
23 dB (A)
Temperature resistance
-60 - 200 °C
Material composition
S235JRG - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Insulation material
Silicone rubber
Hardness insulation material
50° ±5° Shore A
Product class
Premium
Documents
Features & Applications
Features
- Solid, welded nuts for closing screws (diameter 68/72 mm and above)
- Pre-assembled non-slip rubber profile insert
- Profiled clamp band for higher rigidity
- High temperature resistance up to +200°C

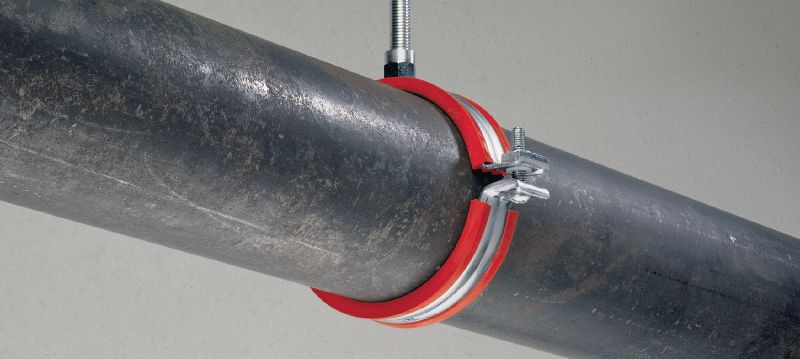

Applications
- heavy-duty pipe installations up to 250 mm
- Installing industrial pipes
- Fastening pipes subject to an extended temperature range
- Recommended for use in dry, interior environments
For approval or certificate information, please see individual items.
