MRA roll connector

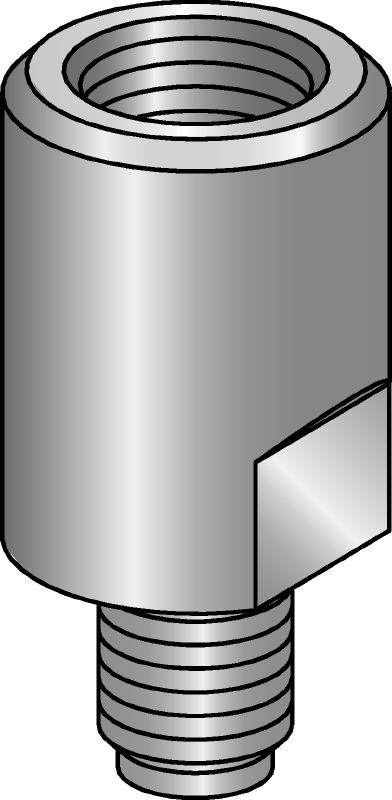

Roll connector adapter MRA 1 (M16) #372613

Galvanised roll pipe ring saddle adapter for converting imperial sizes to metric

Material composition: 40Cr, GB/T 3077
Surface finish: Indoor Coated - Electro galvanised
Wrench size - W: 36 mm

Choose options

Inside thread - MI

1 in

Outside thread - MA

Thread length - L

16 mm

Pack size

Product options

Quantity

Pack

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

INR 8,497.60

INR 339.90 / 1 each

Technical Data

Material composition

40Cr, GB/T 3077

Surface finish

Indoor Coated - Electro galvanised

Wrench size - W

36 mm

Inside thread - MI

1 in

Outside thread - MA

M16

Thread length - L

16 mm

Height - H

49 mm

Weight

186 g

Base material type

n/a

Insulation

Without

Load range

Light-duty

Features & Applications

Features

Allows compatible components of different sizes to be connected
Converts imperial sizes to metric

Applications

Connection adapter for the MRG roll connector
