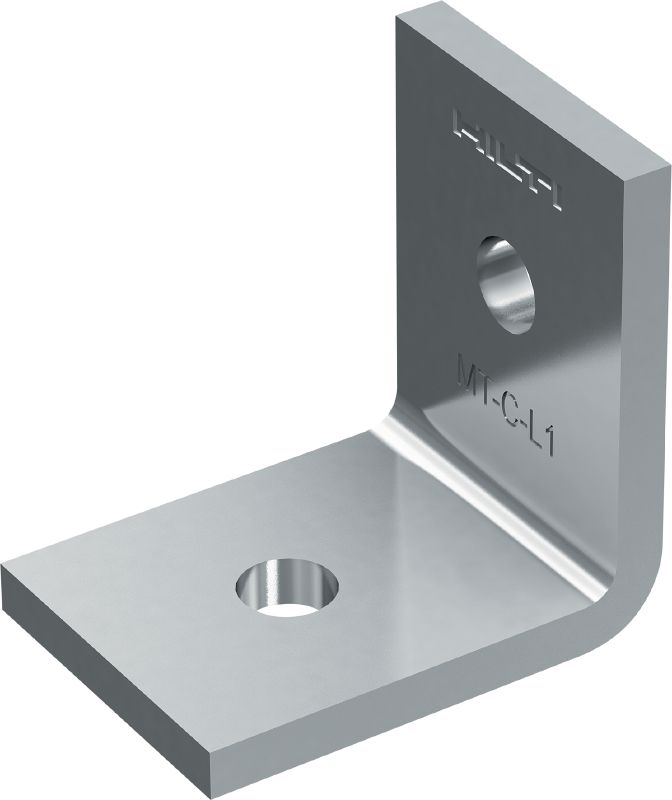

MT-C-L1 Corner angle

Angle connector MT-C-L1 #2271514

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG003287_v1 (218237)
01_IS_MT-C-L1_0001 (218631)

Angle bracket for assembling light-duty strut channel structures

  • Material composition: Q355 or better steel
  • Surface finish: Pre-galvanized - for dry indoor use only
  • Material thickness: 6 mm

Choose options

Pack size
  • 20
 Product options
Quantity
Pack
Total Pieces
20
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
INR 8,736.00
INR 436.80 / 1 each

Technical Data

Details
Technical illustrations
Material composition
Q355 or better steel
Surface finish
Pre-galvanized - for dry indoor use only
Material thickness
6 mm
Weight
0.2 kg
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

Certificate
Approval document
Documentation
Sustainability Documentation
Operating Instruction
pdf EN 1090 Certificate of conformity of the factory production control MT, English [ 348.7 KB ]

Features & Applications

Features

  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Easy to install – compatible with the Hilti MT Twist-Lock, a faster alternative to spring nuts for assembling a modular support system
  • Adaptable – unlike welding, angle brackets allow you to modify strut channel framing during installation and for future MEP requirements
  • Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families, and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering

Applications

  • Right-angle connections between any MT strut channels or MT girders
  • Assembling 2D metal framing for MEP support structures with light loads
  • Suitable for use in dry, indoor environments
