MT-C-L1 OC Corner angle

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG003288_v1 (218238)

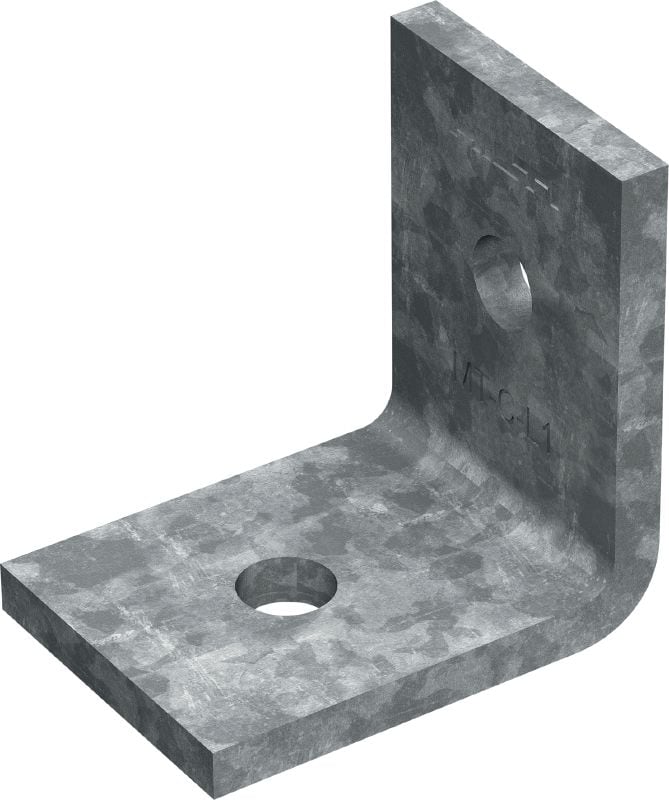

Angle bracket for assembling light-duty strut channel structures, for outdoor use with low pollution

  • Material composition: Q355 or better steel
  • Surface finish: Outdoor Coated - HDG
  • Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Choose options

Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Material composition
Q355 or better steel
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

pdf Corrosion handbook, English [ 9.6 MB ]

Features & Applications

Features

  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Easy to install – compatible with the Hilti MT Twist-Lock, a faster alternative to spring nuts for assembling a modular support system
  • Adaptable – unlike welding, angle brackets allow you to modify strut channel framing during installation and for future MEP requirements
  • Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families, and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering
  • Corrosion resistance – hot-dip galvanised to help protect against moisture and chemical corrosion

Applications

  • Right-angle connections between any MT strut channels or MT girders
  • Assembling 2D metal framing for MEP support structures with light loads
  • Suitable for use in moderately corrosive environments

For approval or certificate information, please see individual items.
