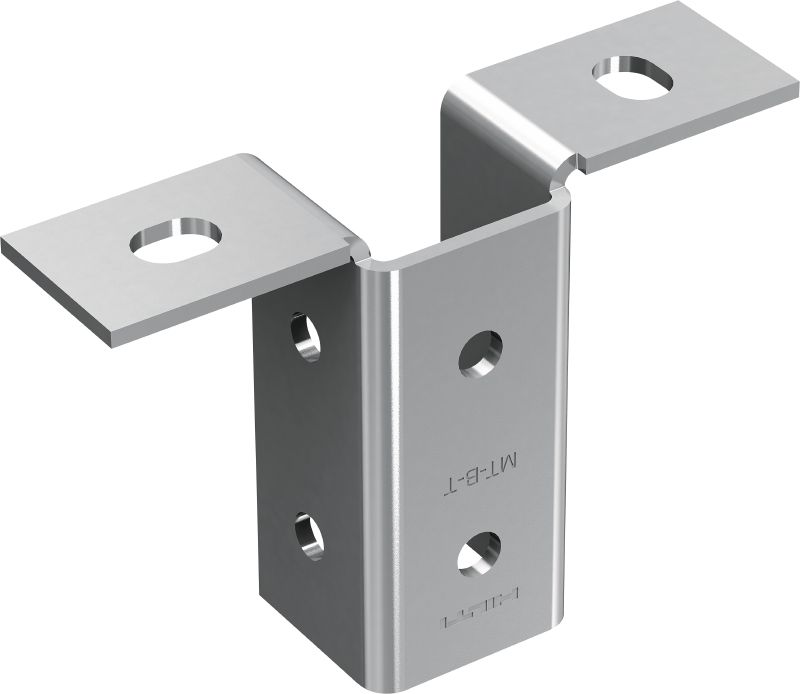

MT-B-T Light-duty baseplate

LCG003339_v1 (218275)

Base connector for anchoring light-duty strut channel structures to concrete or steel

  • Material composition: Q235 or better steel
  • Surface finish: Indoor Coated - Pre-galvanised
  • Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Choose options

Anchor size
  • 12
Pack size
  • 20 pc
 Product options
Quantity
Pack
Total Pieces
20
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
INR 23,520.00
INR 1,176.00
/
1 each

Technical Data

Material composition
Q235 or better steel
Surface finish
Indoor Coated - Pre-galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

pdf EN 1090 Certificate of conformity of the factory production control MT, English [ 348.7 KB ]
pdf ETA-26_0435_Static_Baseplates_EN, English [ 937.2 KB ]

Features & Applications

Features

  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Easy to install – compatible with the Hilti MT Twist-Lock, a faster alternative to spring nuts for assembling a modular support system
  • Adjustable – two slotted anchor holes to simplify baseplate positioning and fastening
  • Adaptable – unlike welding, modular post bases allow you to modify strut channel framing for future MEP requirements
  • Part of a complete Hilti solution – compatible with our direct fastening and anchoring solutions

Applications

  • Fastening MT strut channel to concrete floors, walls or ceilings
  • Fastening MT strut channel to structural steel
  • Anchoring metal framing and MEP support structures with light loads to a base material
  • Suitable for use in dry, indoor environments

For approval or certificate information, please see individual items.
