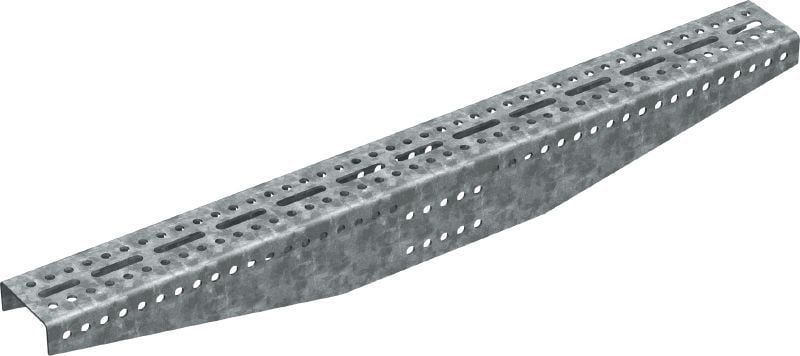

MT-U-GL1 OC T-beam

T-Beam MT-U-GL1 OC #2272070

Flange for constructing T-beams using MT girders, for outdoor use with low pollution

  • Material composition: Q355 or better steel
  • Surface finish: Hot-dip galvanised - for outdoor use
  • Material thickness: 4 mm

Choose options

Pack size
  • 2
Product options
Quantity
Pack
Total Pieces
2
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

INR 50,080.00

INR 25,040.00 / 1 each

Technical Data

14_IS_MT-C-GSP L_0001 (218644)
17_IS_MT-G-UL1_0001 (218647)
Material composition
Q355 or better steel
Surface finish
Hot-dip galvanised - for outdoor use
Material thickness
4 mm
Weight
8.84 kg
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Features & Applications

Features

  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Easy to install – one-step assembly using Hilti MT-TFB thread-forming bolts
  • Optimised load-to-weight ratio – engineered for maximum pipe ring/cable tray capacity with minimum self-weight
  • Economical & efficient - enabling the construction of "T" frames - reducing material, time and anchorage points to the base material
  • Adaptable – unlike welding, angle brackets allow you to modify strut channel framing during installation and for future MEP requirements

Applications

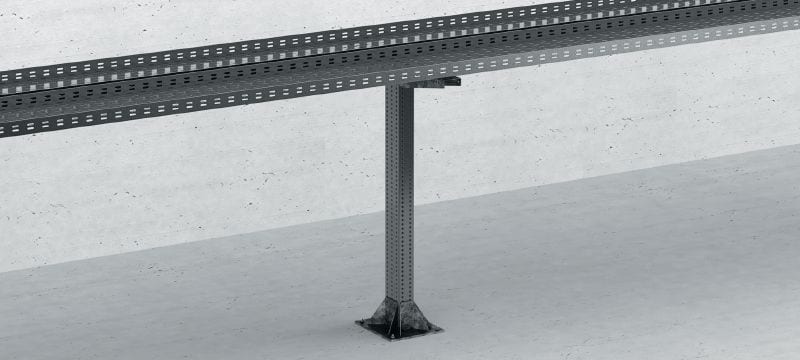

  • Constructing T-beams to support heavy-duty MEP installations by fastening to an upright MT-90 or MT-100 girder
  • Suitable for use in moderately corrosive environments
