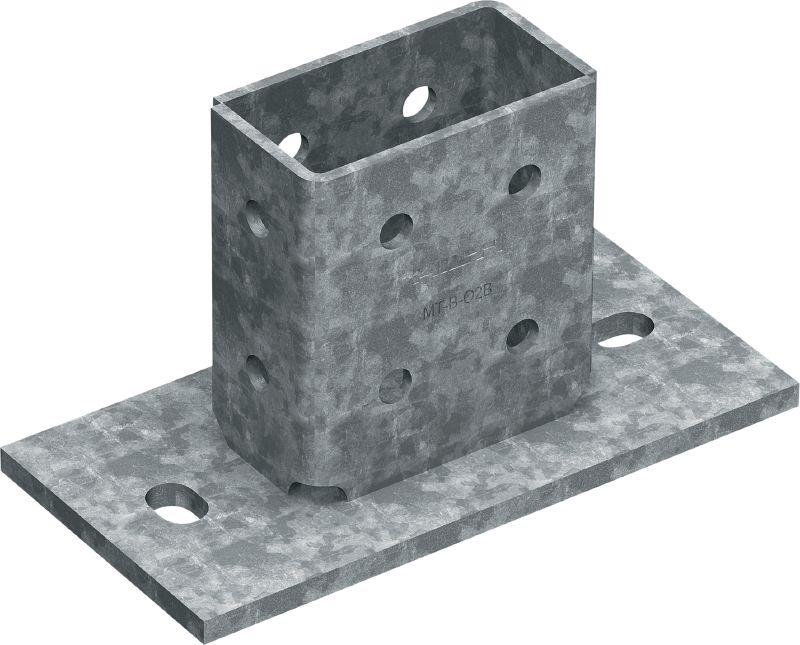

MT-B-O2B OC 3D-load baseplate

2-hole Baseplate MT-B-O2B OC #2282213

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG003358_v1 (218288)
04_IS_MT-B-O2B_0001 (218665)

Base connector for anchoring strut channel structures under 3D loading to concrete and steel, for outdoor use with low pollution

  • Material composition: Q235 or better steel
  • Surface finish: Hot-dip galvanised - for outdoor use
  • Material thickness: 8 mm

Choose options

Pack size
  • 6
 Product options
Quantity
Pack
Total Pieces
6
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
INR 37,929.60
INR 6,321.60 / 1 each

Technical Data

Details
Technical illustrations
Material composition
Q235 or better steel
Surface finish
Hot-dip galvanised - for outdoor use
Material thickness
8 mm
Weight
2.06 kg
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Approval document
Certificate
Documentation
Sustainability Documentation
Operating Instruction
pdf ETA-23-0826 Static MT Base Connectors, English [ 2.4 MB ]
pdf ETA-23-0104 MT Frame Trapeze, English [ 3.3 MB ]

Features & Applications

Features

  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Easy to install – compatible with the Hilti MT Twist-Lock, a faster alternative to spring nuts for assembling a modular support system
  • Adjustable – two slotted anchor holes to simplify baseplate positioning and fastening
  • Adaptable – unlike welding, modular post bases allow you to modify strut channel framing for future MEP requirements
  • Part of a complete Hilti solution – compatible with our direct fastening and anchoring solutions

Applications

  • Fastening MT strut channel to concrete floors, walls or ceilings
  • Fastening MT strut channel to structural steel
  • Anchoring metal framing and MEP support structures to a base material when resistance to 3D stresses is required
  • Suitable for use in moderately corrosive environments
