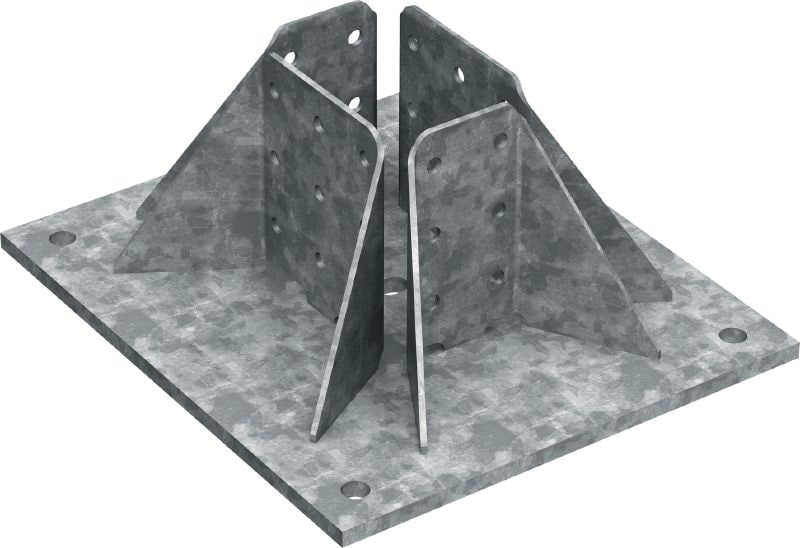

MT-B-GXL O4 OC Heavy-duty baseplate

Base connector for anchoring 3D, heavy-duty MT-100 girder structures to concrete, for outdoor use with low pollution

Technical Data

Material composition

Q355 or better steel

Surface finish

Outdoor Coated - HDG

Environmental conditions

Outdoor, low to moderate pollution (C3 / C4 - low)

Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
Easy to install – one-step assembly using Hilti MT-TFB thread-forming bolts
Adaptable – unlike welding, modular post bases allow you to modify metal framing for future MEP requirements
Hilti's full solution - compatible with Hilti's anchorage solutions for a fully integrated modular support structure
Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families, and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering

Fastening MT-100 girders to concrete floors, walls or ceilings
Anchoring metal framing and MEP support structures with heavy loads to a base material
Suitable for use in moderately corrosive environments

For approval or certificate information, please see individual items.
