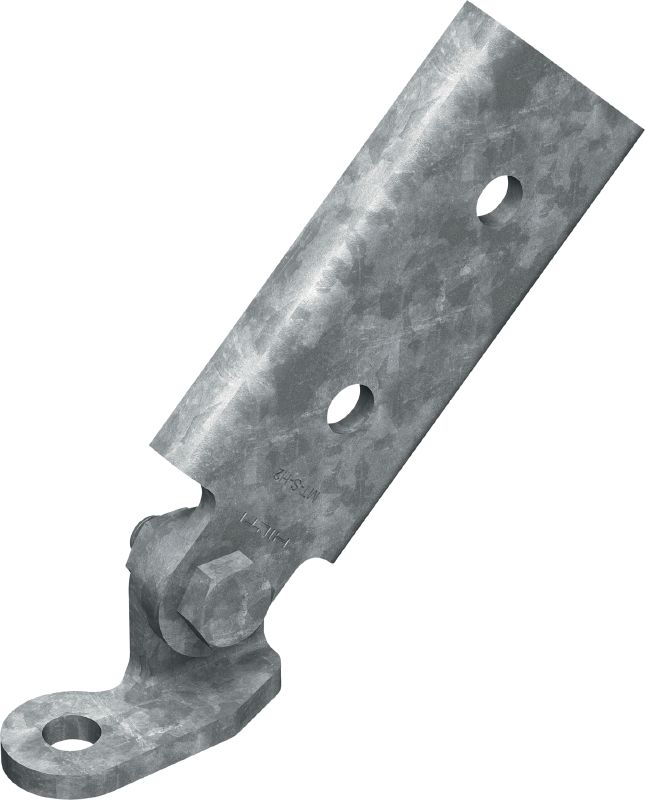

Two-hole hinged connector for assembling seismic bracing of MT strut channel framing, for outdoor use with low pollution

  • Material composition: Q355 or better steel
  • Surface finish: Outdoor Coated - HDG
  • Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Technical Data

Material composition
Q355 or better steel
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Features & Applications

Features

  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Easy to install – pivoting joint simplifies assembly and fastening
  • Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families, and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering
  • Engineering and calculation service available – your local Hilti Engineers can provide advice and calculation services on more complex projects
  • Corrosion resistant – hot-dip galvanised to help protect against moisture and chemical corrosion

Applications

  • Seismic bracing of strut channel framing
  • Anchoring strut channel brace members to concrete for use as seismic bracing
  • Connecting strut channel brace members to MT-S-L seismic angle brackets for use as seismic bracing
  • Suitable for use in moderately corrosive environments

For approval or certificate information, please see individual items.
