MGM 2

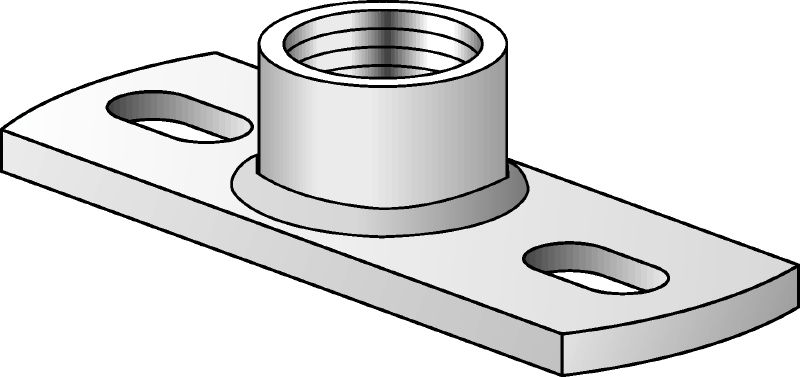

Premium galvanised 2-hole base plate for light-duty fixed point applications (imperial)
- Material composition: DD11 - DIN EN 10111
- Surface finish: Indoor Coated - Electro galvanised
- Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Choose options
Thread connection - M
- 3/4 in
Height - H
- 21 mm
Maximum tensile load - F
- 8 kN
Pack size
- 10
Quantity
Packs
Total Pieces
1
Discounted net
From INR 5,901.60
Technical Data
Material composition
DD11 - DIN EN 10111
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Number of holes
2
Features & Applications
Features
- Solid base plate for high load transfer
- Increased load capacity due to all-around welded connection head
- Load classes and capacities matched to Hilti pipe clamps
Applications
- Installing light fixed points for pipes subject to thermal elongation and contraction
- Heavy-duty base plate for single point fastening of pipes
For approval or certificate information, please see individual items.
