MQS-CH

Hinge MQS-CH #2083741

Configurator
Technical Data
Documents
Features & Applications
Related Products
IS_MQS_007_o.eps

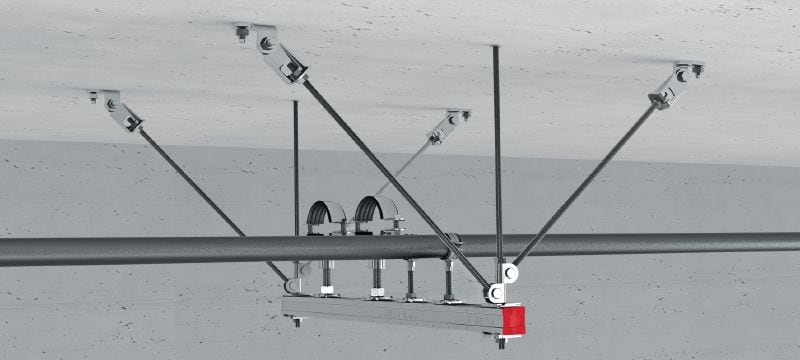

MQS rod/rod Trapeze
LCG001327_v2.tiff
LCG001328_v2.tiff

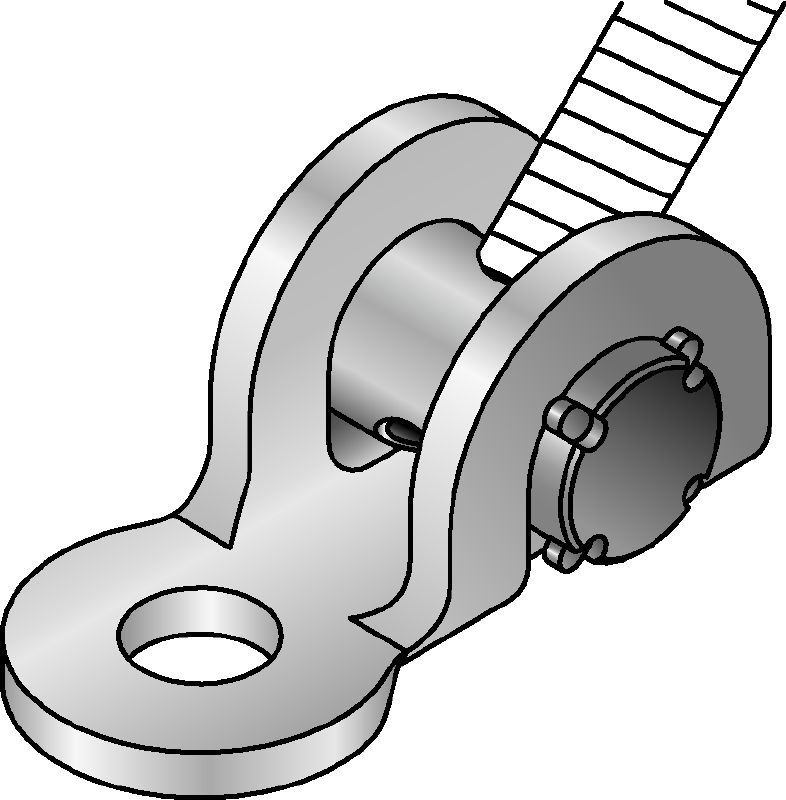

Galvanised pre-assembled threaded rod brace connector with increased load capacity for mounting to base material

  • Material composition: Connector: S275JR - DIN EN 10025, Pin: 11SMnPb37+C
  • Surface finish: Indoor Coated - Electro galvanised
  • Material thickness: 4 mm

Choose options

Pack size
  • 10
 Product options
Quantity
Pack
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
INR 8,608.00
INR 860.80 / 1 each

Technical Data

Material composition
Connector: S275JR - DIN EN 10025, Pin: 11SMnPb37+C
Surface finish
Indoor Coated - Electro galvanised
Material thickness
4 mm
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
95 g
Thread - M
M10

Documents

Technical information
Operating Instruction
pdf Seismic_Manual_0522_W4571_EN, English [ 8.8 MB ]

Features & Applications

Features

  • Easy and quick to mount to M10 threaded rod
  • Maximum installation flexibility due to adjustable angle
  • High load capacity – engineered for optimal transfer of seismic loads

Applications

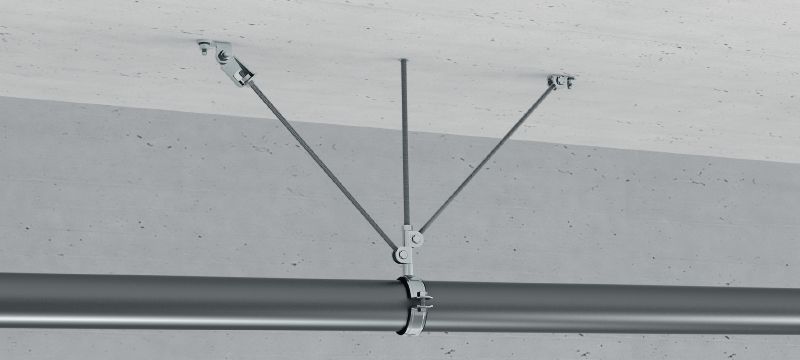

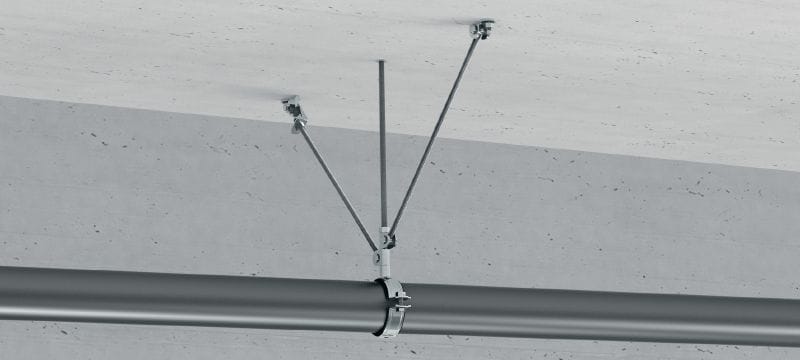

  • Installing pipes, cable trays and air duct supports in seismic-relevant areas
  • Assembling seismic bracing using threaded rods in a wide range of seismic applications
