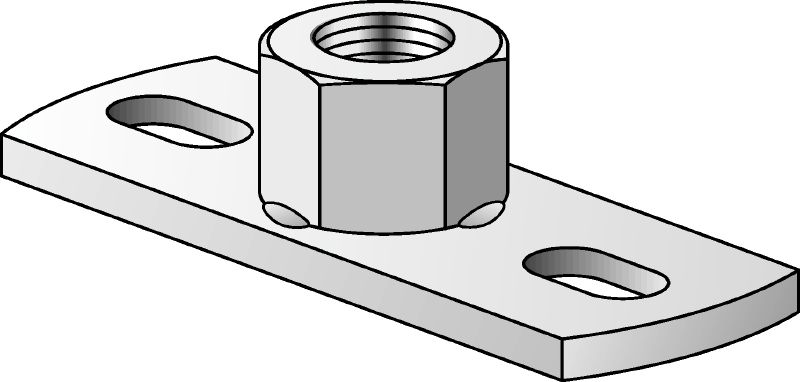

MGS 2-R medium-duty base plates
2-hole Baseplate MGS 2-R-M12 #247762
Stainless steel (A4) medium-duty base plate to fasten metric threaded rods with two anchor points
- Thread connection - M: M12
- Height - H: 16 mm
- Maximum tensile load - F: 3 kN
Choose options
Thread connection - M
- M12
Height - H
- 16 mm
Maximum tensile load - F
- 3 kN
Pack size
- 10
Quantity
Pack
Total Pieces
10
Discounted net
INR 19,880.00
INR 1,988.00 / 1 each
Technical Data
Thread connection - M
M12
Height - H
16 mm
Maximum tensile load - F
3 kN
Material composition
Stainless steel, 1.4571/1.4404 (A4) - EN 10088, AISI 316Ti / AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Number of holes
2
Weight
0.15 kg
Features & Applications
Features
- Easy installation of threaded rods
- Secure connection with 2 anchor points
Applications
- Fastening medium-duty pipes to concrete with two fastening points
- Recommended for use in corrosive environments
