MQT Beam clamp

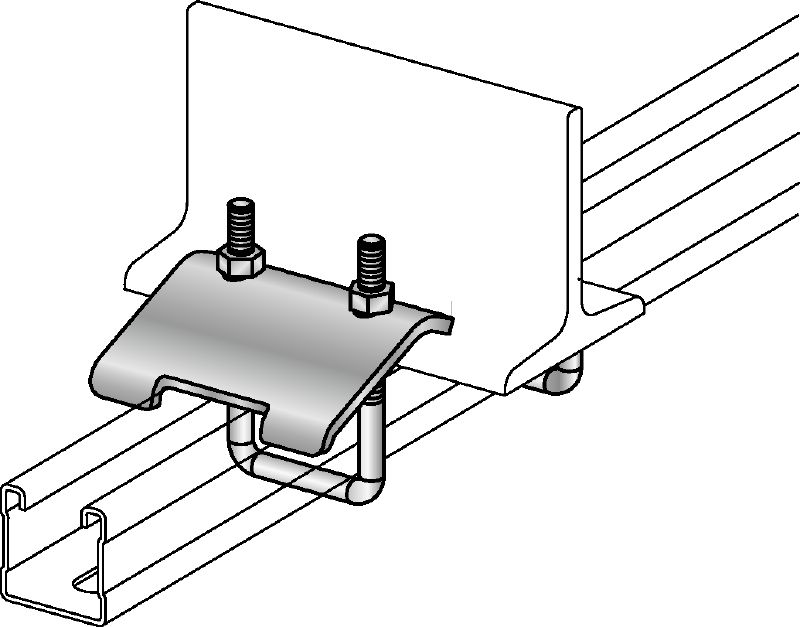

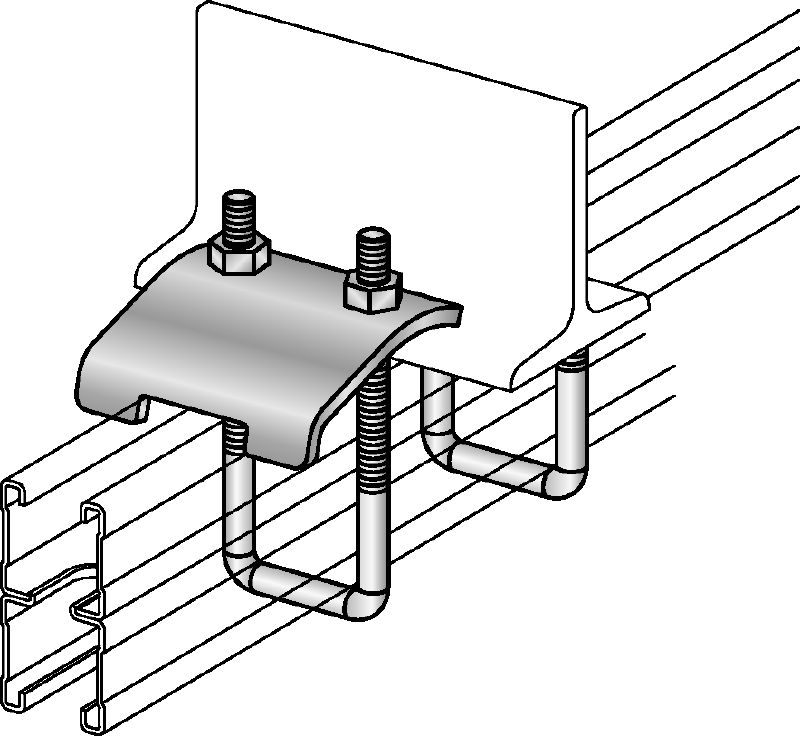

Galvanised beam clamp for connecting MQ strut channels directly to steel beams
- Material composition: Claw plate: S235JR - DIN EN 10025, U-bolt: S235JRG2 - DIN EN 10025, Nut - DIN 50961
- Surface finish: Indoor Coated - Electro galvanised
- Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Choose options
Thread connection - M
- M8
- M10
Pack size
- 10
Quantity
Packs
Total Pieces
1
Discounted net
From INR 10,648.00
Technical Data
Material composition
Claw plate: S235JR - DIN EN 10025, U-bolt: S235JRG2 - DIN EN 10025, Nut - DIN 50961
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Documents
pdf Engineering Centre Whitepaper - FoS Studs and Beam Clamps (EN), English [ 762.1 KB ]
Features & Applications
Features
- Easier installation and positioning of strut channels
- No drilling or welding necessary
- Versatile, no small parts to lose
- The attachment fits all standard beams (max. clamping thickness = 23 mm)
- Quick installation
Applications
- Compatible with steel beams with max. flange thickness of 23 mm
- For fastening MQ channels to steel beams without drilling or welding (use only in pairs!)
For approval or certificate information, please see individual items.
