MQM Wing nut

Wing nut MQM-M6 #369624

Configurator
Technical Data
Documents
Features & Applications
Related Products
14709_o.eps

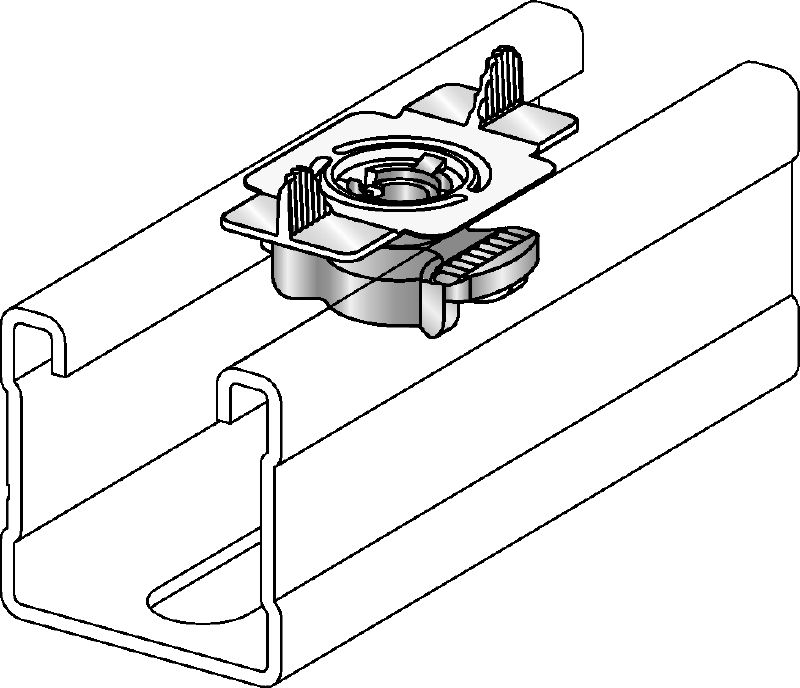

Galvanised wing nut for connecting modular support system components

  • Tightening torque: 10 Nm
  • Thread connection - M: M6
  • Material composition: Wings: plastic PA, Nut: S355MC - DIN EN 10149-2

Choose options

Thread connection - M
  • M6
Pack size
  • 50
 Product options
Quantity
Pack
Total Pieces
50
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
INR 13,320.00
INR 266.40 / 1 each

Technical Data

Tightening torque
10 Nm
Thread connection - M
M6
Material composition
Wings: plastic PA, Nut: S355MC - DIN EN 10149-2
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
24 g

Documents

Technical information
Operating Instruction
pdf Technical data HAC-30 with MQM wing nut, English [ 3.4 MB ]

Features & Applications

Features

  • Quick connection of modular support system components to the open side of MQ strut channel
  • Flexible wings – for quicker installation and positioning within MQ strut channel openings
  • Serrated surfaces – for quicker, more accurate adjustment
  • Compact dimensions
  • Can be used in shallow, standard and deep strut

Applications

  • Fastening pipes and air ducts
  • Fastening cable trays and cable baskets
