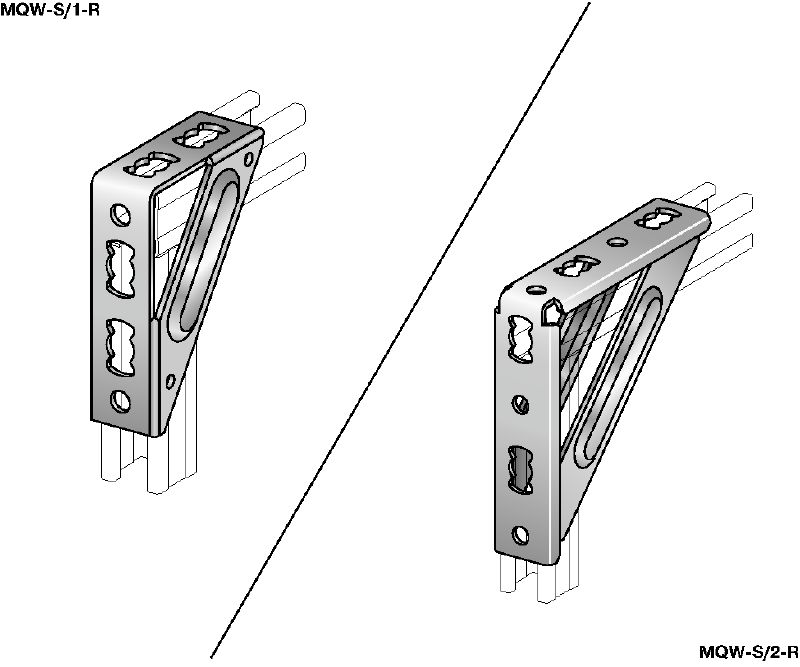

MQW-S-R Angle bracket

Angle MQW-S/1-R #304058

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG002205_v1 (199189)
MQW-S1
MQW-S1

Stainless steel (A4) 90-degree heavy angle for connecting multiple MQ strut channels in medium/heavy-duty applications

  • Material composition: Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L
  • Surface finish: Outdoor Plus - Stainless Steel
  • Material thickness: 4 mm

Choose options

Angle
  • 90 °
Pack size
  • 10
 Product options
Quantity
Pack
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
INR 29,904.00
INR 2,990.40 / 1 each

Technical Data

Details
Technical illustrations
Material composition
Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Material thickness
4 mm
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Angle
90 °
Weight
430 g

Documents

pdf Operating Instruction MQW-S/1, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 971.9 KB ]

Features & Applications

Features

  • Compatible with push button channel connectors – for much faster, adaptable assembly
  • Adjustable – easily fit and repositioned along strut channels
  • Compatible with MQN-R push button channel connectors – for much faster, adaptable assembly
  • Universal: few parts for all applications
  • Easy to handle

Applications

  • Assembling channels for heavy load frames and support structures
  • Compatible with multiple MQ strut channels
  • Recommended for use in corrosive environments
  • For fastening to walls, floors and ceilings
