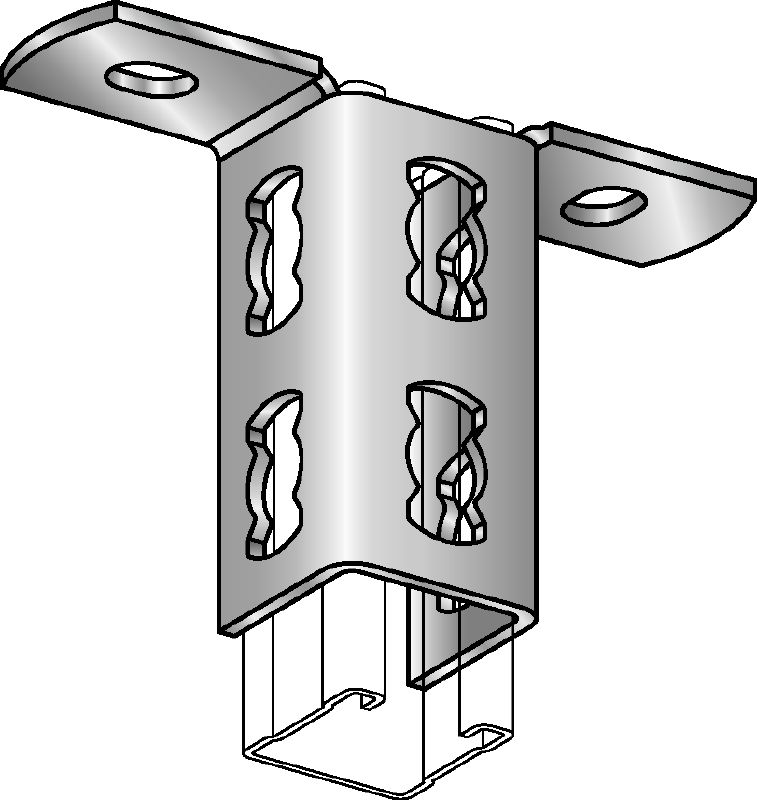

MQV-R Channel connector

Rail support MQV-2/2 D-14-R #304033

Configurator
Technical Data
Documents
Features & Applications
Related Products
IS_ME_232.eps
IS_HNA_232.eps

Stainless steel (A4) channel connector used as a longitudinal extender for MQ strut channels

  • Tightening torque: 40 Nm
  • Material composition: Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L
  • Surface finish: Outdoor Plus - Stainless Steel

Choose options

Pack size
  • 10
 Product options
Quantity
Pack
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
INR 32,376.00
INR 3,237.60 / 1 each

Technical Data

Details
Technical illustrations
Tightening torque
40 Nm
Material composition
Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Material thickness
4 mm
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Weight
440 g

Documents

Documentation
Operating Instruction
pdf Corrosion handbook, English [ 9.6 MB ]

Features & Applications

Features

  • Universal – complete many different applications using few parts
  • Adjustable – easily fitted and repositioned along strut channels
  • Compatible with MQN-R push button channel connectors – for much faster, adaptable assembly

Applications

  • Connecting strut channels to various base materials
  • Connecting two MQ strut channels together
  • Compatible with multiple MQ strut channels
