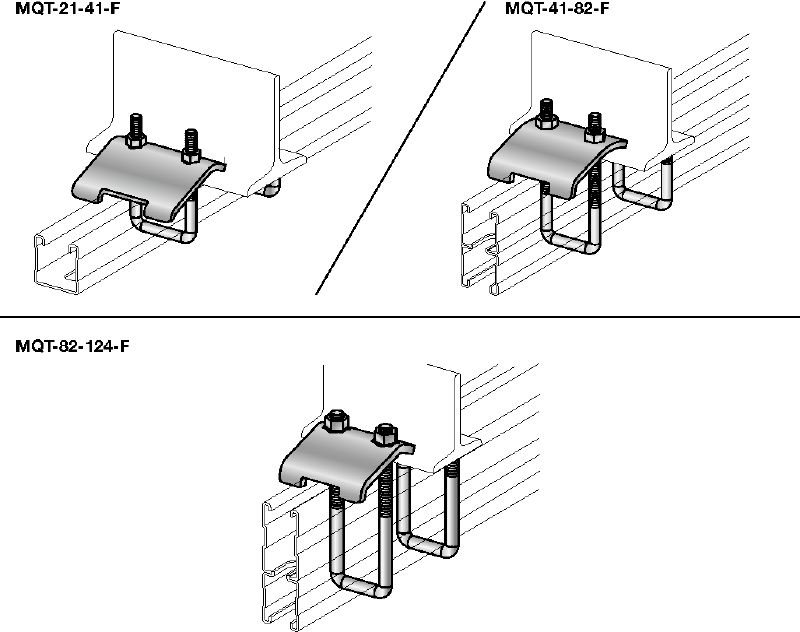

Hot-dip galvanised (HDG) beam clamp for connecting MQ strut channels directly to steel beams

  • Material composition: Claw plate: S235JR - DIN EN 10025, U-bolt: S235JRG2 - DIN EN 10025
  • Surface finish: Outdoor Coated - HDG
  • Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Technical Data

Material composition
Claw plate: S235JR - DIN EN 10025, U-bolt: S235JRG2 - DIN EN 10025
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Features & Applications

Features

  • Pre-assembled – for quicker installation and to avoid losing parts
  • No drilling or welding necessary
  • Versatile, no small parts to lose
  • The attachment fits all standard beams (max. clamping thickness = 23 mm)
  • Quick installation

Applications

  • Compatible with steel beams with max. flange thickness of 23 mm

For approval or certificate information, please see individual items.
